15 File Transfer Guide ​

1.Settings - System - File Transfer Function Description ​

File transfer between different devices within the local area network

2.File transfer operation process ​

  1. Download LANDrop, software official website (https://landrop.app/?ref=appinn)

    ① Click on Downloads

    ② After jumping to the page, find the version required by the corresponding system and click on its name to download it.

    ps: Cloud disk download. Address link:download.aubo-robotics.cn/tools/LANDrop

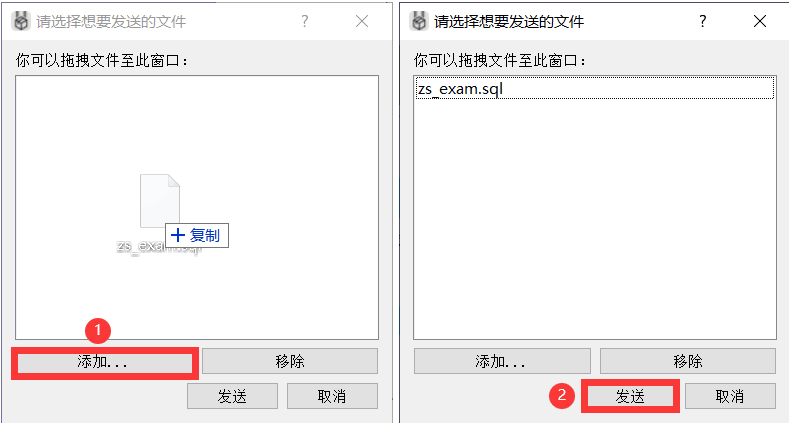

  2. Open LANDrop, and select the file to be operated on

    ① Drag and drop files or click add to add files.

    ② After confirming the information, click Send

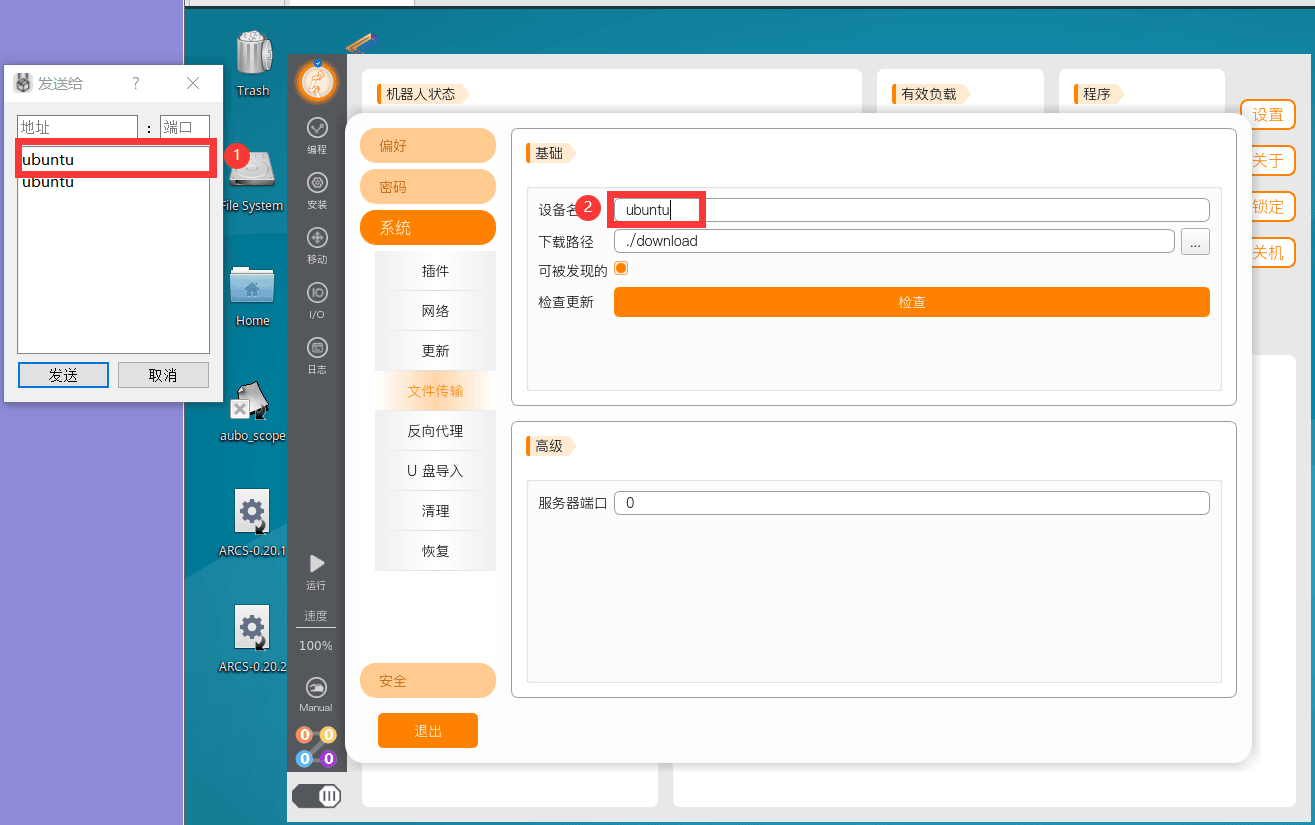

  3. Select target computer device

    ① Click on the target computer. Its name must match the device name shown on the teach pendant.

    ② The teach pendant displays the device name.

    ③ If device names are duplicated, click the name in the list.

    ④ The selected device's IP address is displayed.

    ⑤ It must match the pendant's Network IP address.

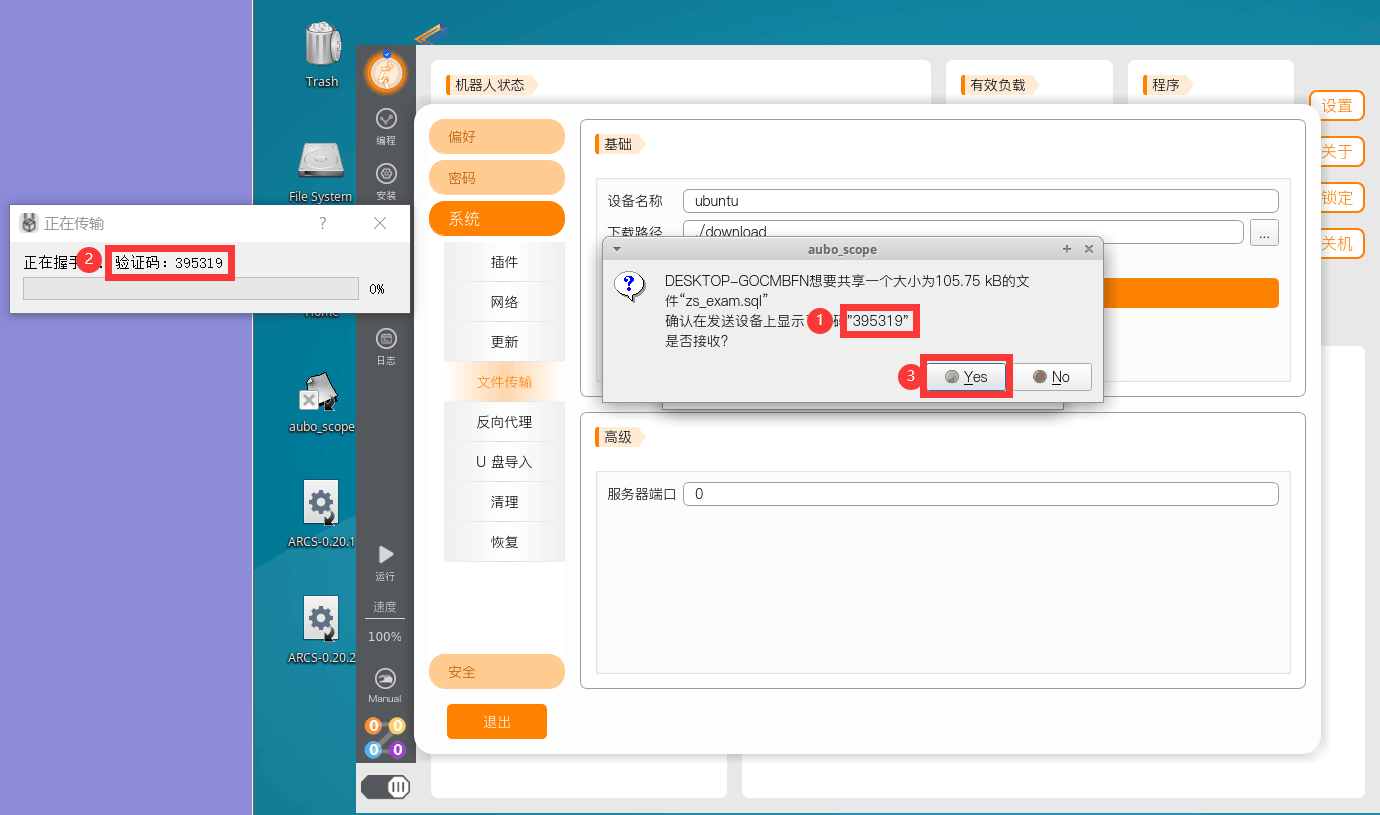

  4. Confirm receipt on the teach pendant and establish connection

    ① Confirm whether the software verification code on the local computer matches the code displayed on the target computer.

    ② The software verification code.

    ③ If the codes match, click Yes in the pop-up window.

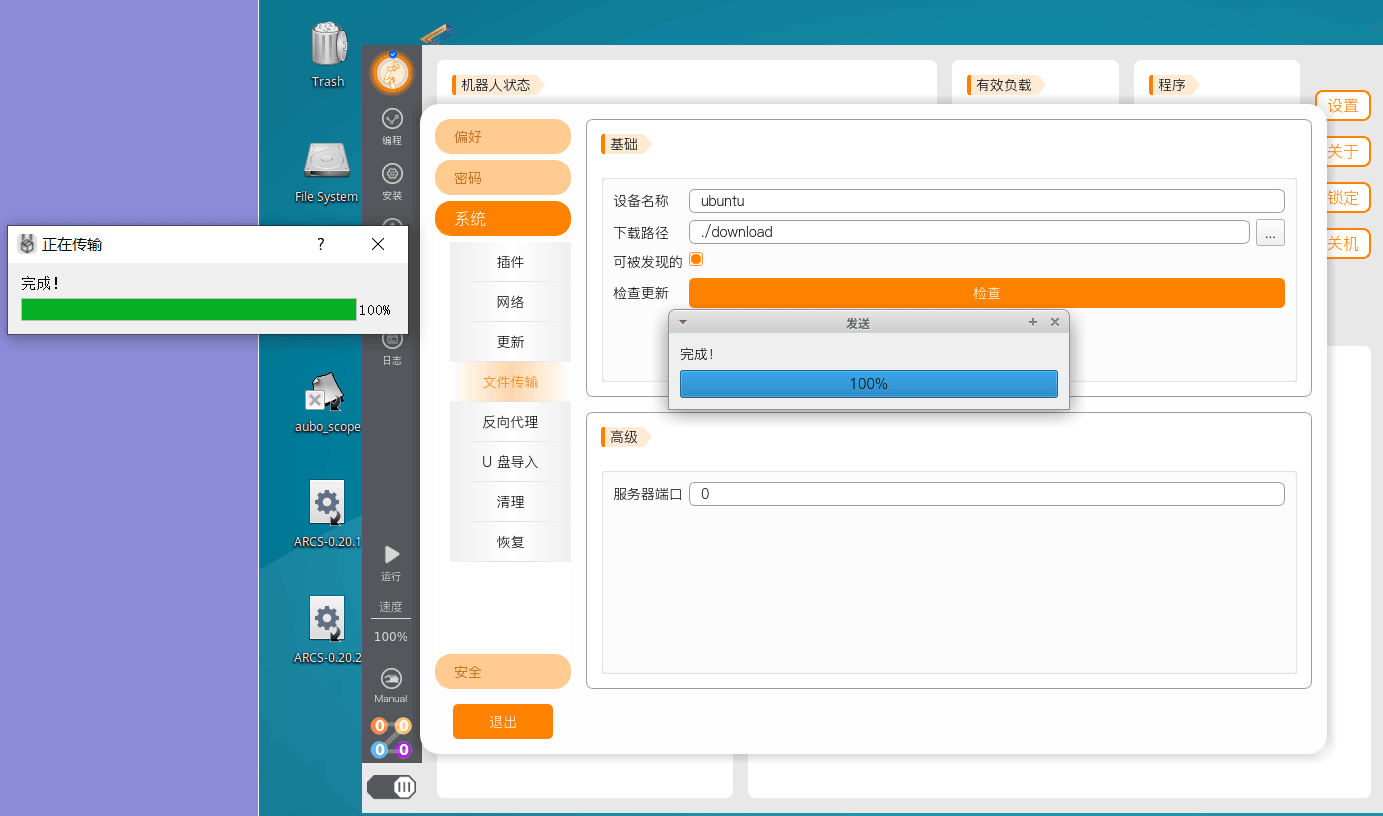

  5. The transfer is completed, and the file is stored in the /arcs_ws/download/ directory of the ARCS software.
