Camera Application

1. Communication introduction

At present, there are two modes for robot arm to communicate with visual device (camera):

1. The robot arm communicates with the camera via TCP/IP. By adding lua script to the program tree, the camera is triggered to take photos and obtain data. The obtained data type has two meanings:

   (1) The robot arm directly obtains the required target location ---- absolute coordinates;

   (2) The robot arm obtains the distance to be offset ---- relative coordinates;

2. The camera is connected to the PLC and is triggered to take a photo. The PLC communicates with the robot arm via communication protocols such as Modbus and Profinet. After the photo is taken, the PLC sends the required offset value to the robot arm, which then performs X, Y, and RZ offsets based on the relative position.

2. ARCS camera communication mode

1. ARCS can use socket communication to implement TCP/IP communication between the robot and the camera. The AUBO developer website provides relevant examples.

   Socket Class Reference | AUBO SDK

   communication script template

   -- The example camera uses TCP/IP to communicate, receive photos and send data
   -- Import to the LuaSocket module
   local socket = require("socket")

   -- Set the timeout time (unit: s)
   local timeout_seconds = 5

   -- Encapsulate into a function; transfer parameters: server_ip, server_port, message
   function send_and_receive(server_ip, server_port, message)
       -- Create TCP client socket
       local client = socket.tcp() -- Create TCP socket
       client:settimeout(timeout_seconds) -- Set the timeout time and prevent blocking

       -- Try to connect the server
       local success, err = client:connect(server_ip, server_port)
       if not success then
           textmsg("Failure to connect the server:" .. tostring(err))
           return nil -- Exit the script directly if the connection fails
       end

       textmsg("Connected to the server:" .. server_ip .. ":" .. server_port)

       -- The content of the message to be sent. Check the communication protocol of the corresponding camera
       local bytes, send_err = client:send(message .. "\n") -- Add line breaks so that the server recognizes it as a complete line
       if not bytes then
           textmsg("Send failed:" .. tostring(send_err))
           client:close()
           textmsg("Disconnected from the server.")
           return nil
       else
           textmsg("Send success:" .. message)
       end

       -- Receive the data returned by the server (read by line)
       local response, recv_err = client:receive("*a") -- *a reads all data, *l reads single line of data
       if response then
           textmsg("Received server response:" .. response)

           -- Judge according to the content
           if response == "OK" then
               textmsg("Server confirms receipt of message.")
           else
               textmsg("Server returns unknown message.")
           end
       else
           textmsg("Receive failed:" .. tostring(recv_err))
       end

       -- Close the connection
       client:close()
       textmsg("Disconnected from the server.")

       return response -- Return server response
   end

   -- Set the server IP and port
   local server_ip = "192.168.1.100"
   local server_port = 8080
   -- The content of the message to be sent. Check the communication protocol of the corresponding camera
   local message = "Hello Server"

   local response = send_and_receive(server_ip, server_port, message)
   if response then
       -- Continue processing according to the returned content
   end

   Vizum camera communication example (for reference only).lua

2. Use Modbus master communication, use PLC as a transfer station, send data to PLC, or receive data sent by PLC

   Modbus communication reference: 29 Instructions for ARCS Modbus · AUBO Application Notes

   Modbus master reads and writes register floating point number.lua

   -- Example of modbodbus master reading and writing floating point number
   function writeModbusFloat(value, lowSignalName, highSignalName)
       local word = math.float2words(value)
       local low_word = word[1]
       local high_word = word[2]
       modbusSetOutputSignal(highSignalName, high_word)
       modbusSetOutputSignal(lowSignalName, low_word)
   end

   function readModbusFloat(lowSignalName, highSignalName)
       return math.words2float(modbusGetSignalStatus(lowSignalName), modbusGetSignalStatus(highSignalName))
   end

   -- Example of Modbus master reading the values of register addresses Modbus_0 and Modbus_14 and assigning them to variable P1. Note that the reading and writing of floating point number requires two register addresses
   P1 = readModbusFloat("Modbus_0", "Modbus_1")
   -- Example of Modbus master register addresses Modbus_0 and Modbus_1 written to -3.14. Note that the read and write of floating point number need to occupy two register addresses
   writeModbusFloat(-3.14, "Modbus_0", "Modbus_1")

3. Use slave communication (modbus slave and Profinet slave are available), use PLC as a transfer station, send data to PLC, or receive data sent by PLC

   Slave reads and writes general register floating point number.lua

   -- Slave general register reads and writes floating point number
   function writeModbusFloat(value, low, high)
       local word= math.float2words(value)
       local high_word=word[1]
       local low_word=word[2]
       setInt16Register(high, high_word)
       setInt16Register(low, low_word)
   end

   function readModbusFloat(low, high)
       return math.words2float(getInt16Register(high), getInt16Register(low))
   end
   -- Example of slave writing general register addresses 300 and 301 to -3.14. Note that the read and write of floating point number need to occupy two general register addresses
   writeModbusFloat(-3.14, 0, 1)
   -- Example of slave reading the values of general register addresses 300 and 301. Note that the read and write of floating point number need to occupy two general register addresses
   P1=readModbusFloat(0, 1)

3. Offset implementation

1. Offset via custom coordinate system

   Reference example: 40 Visual Offset Example · AUBO Application Notes

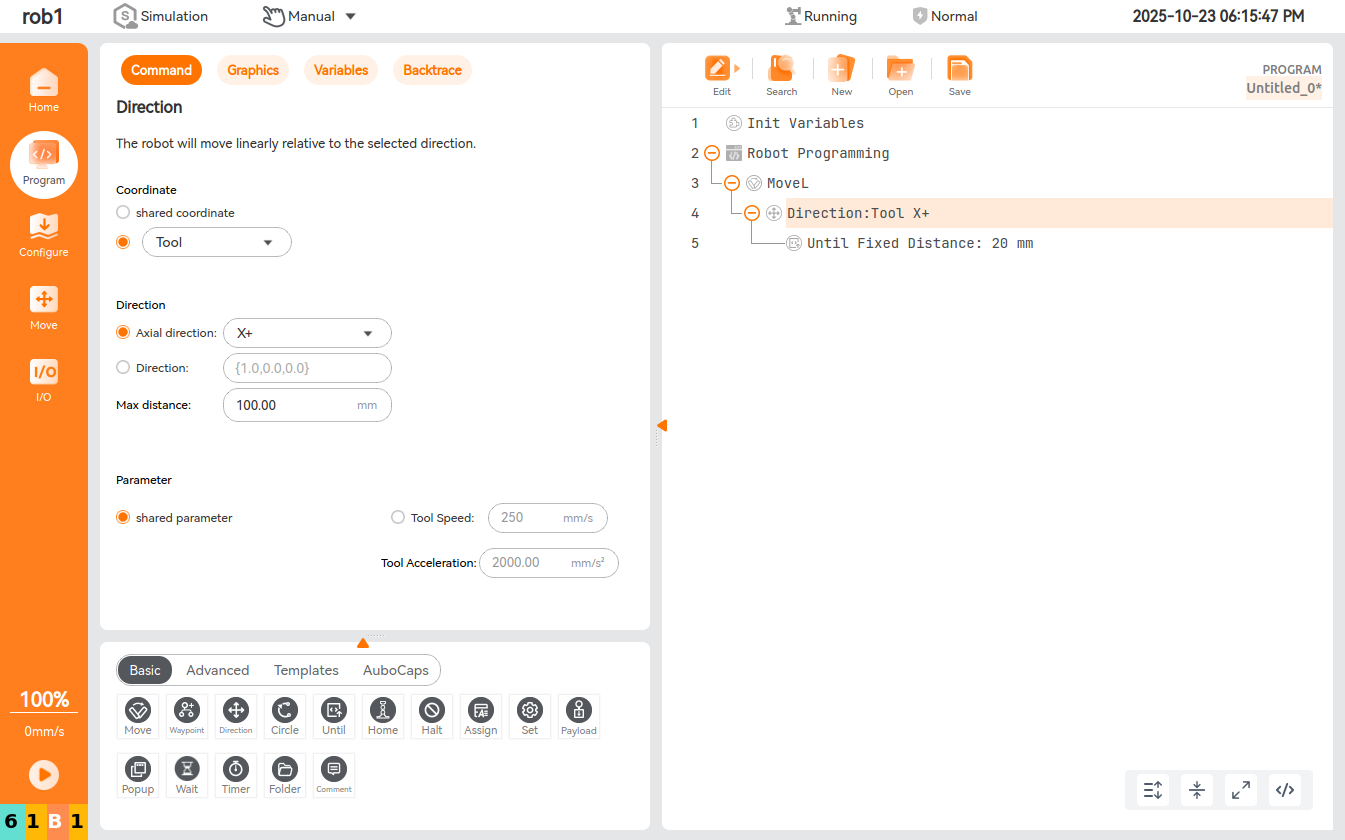

2. Offset via direction - direct node

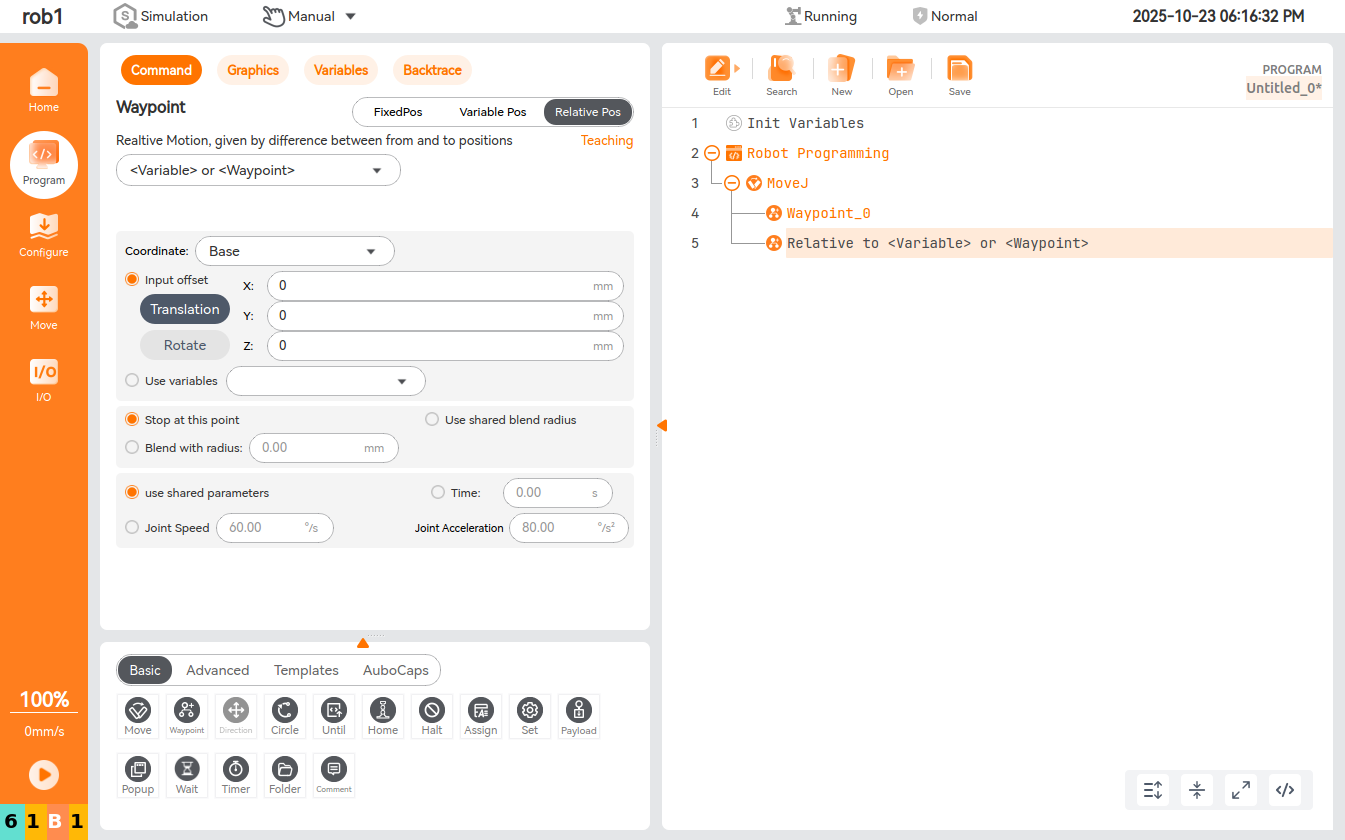

3. Offset relative to variables or waypoints in the 0.31 branch
