User Guide of LAN Port Function

1. Port introduction

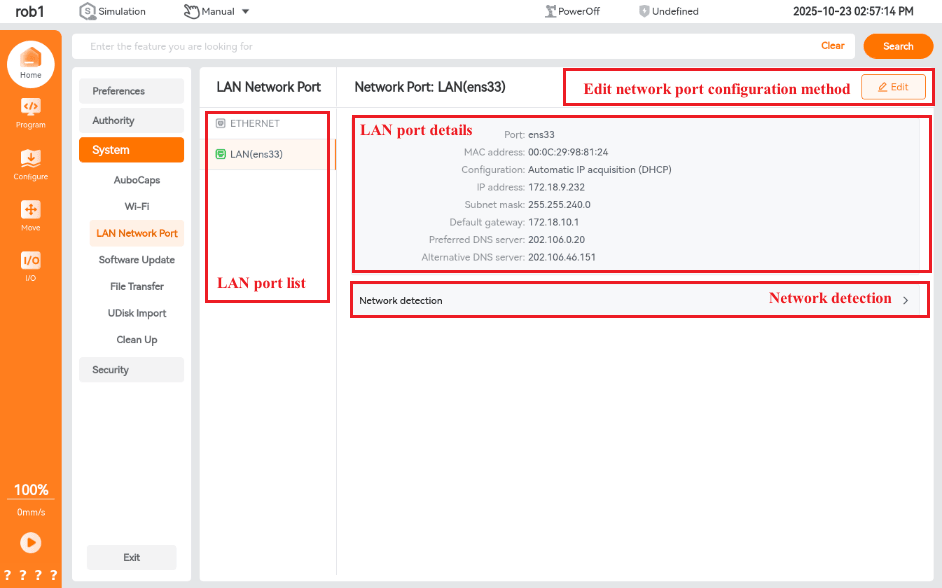

Set the LAN port configuration in 'Home - Settings - System - LAN Port'

2. Function introduction

2.1 Network port configuration

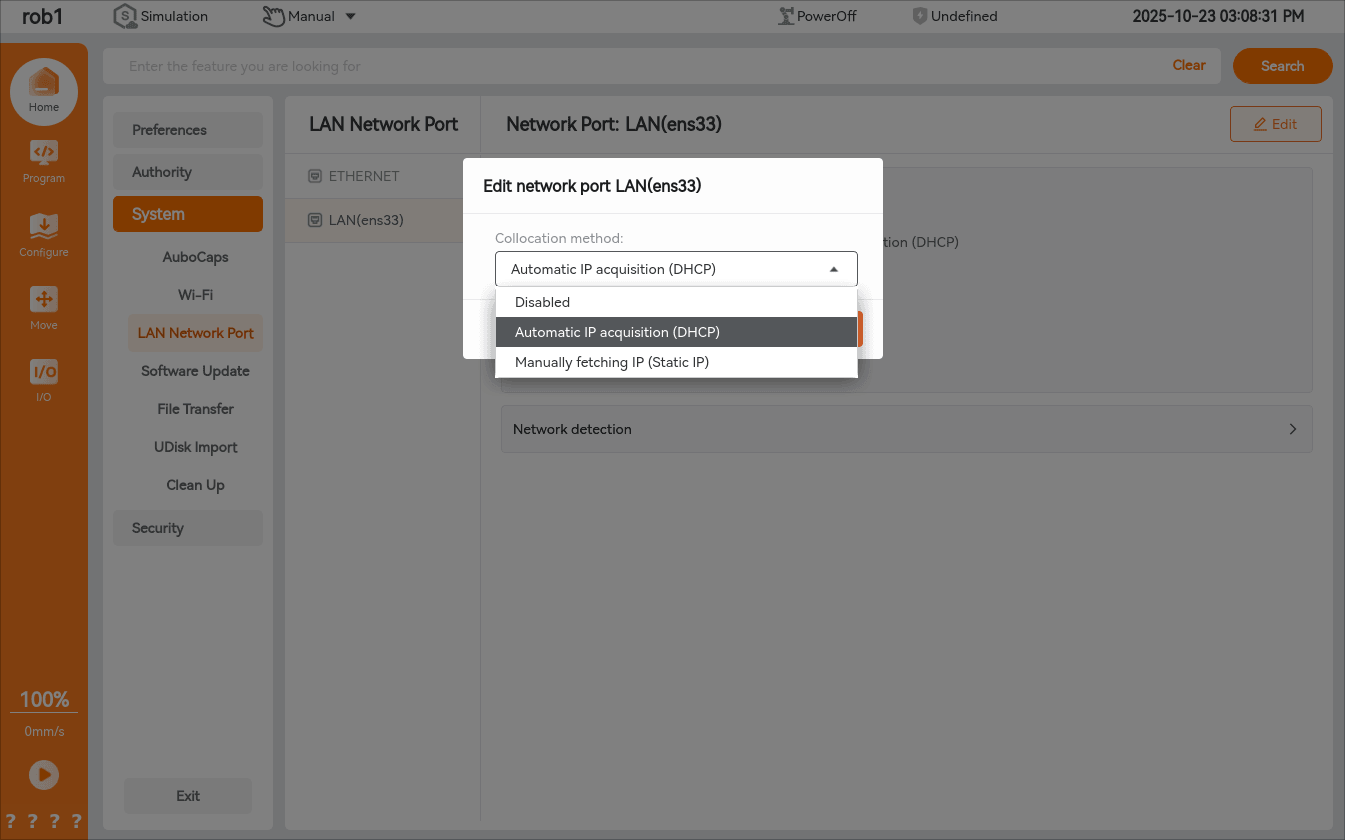

The network port can be configured as DHCP/static/disable. Click 'Edit' to configure the network port

For instructions on network configuration of DHCP/static/disable, please refer to [26 ARCS Network Configuration Instructions] (https://docs.aubo-robotics.cn/application_notes/26-arcs-networkconfig/)

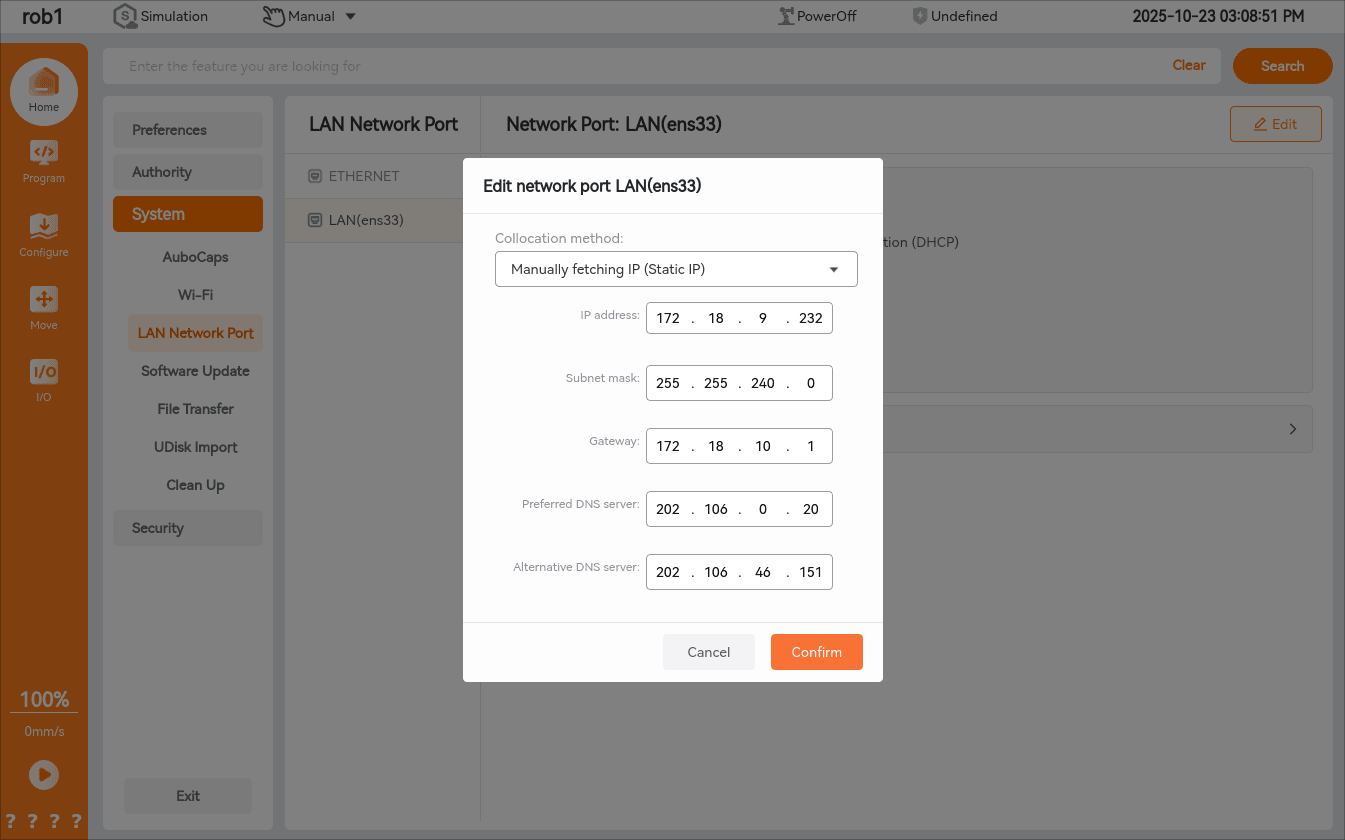

When a static address is configured, the software will automatically pre-fill some fields for ease of use

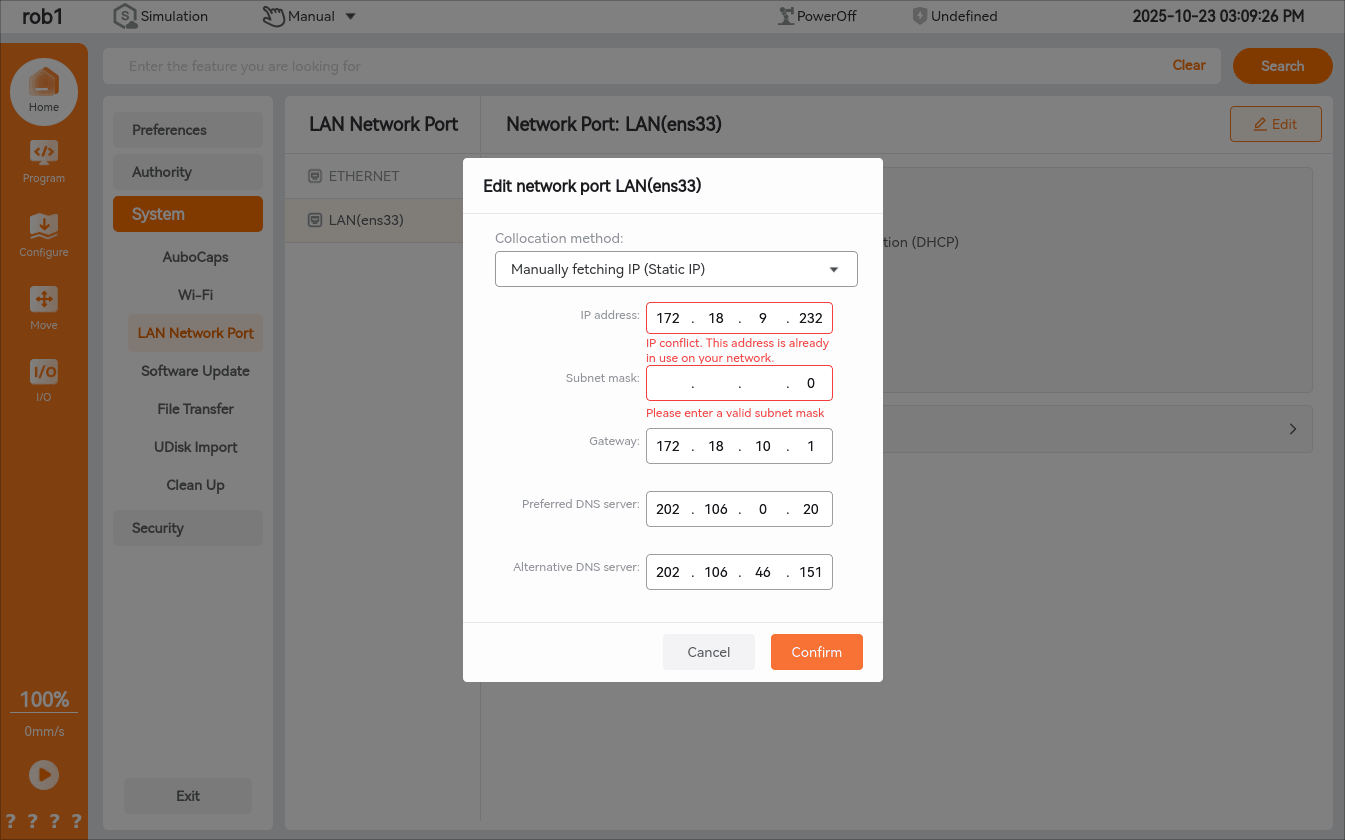

When the configured IP address is occupied by other devices, the IP address conflict and the unfilled part will be prompted during entering or submitting

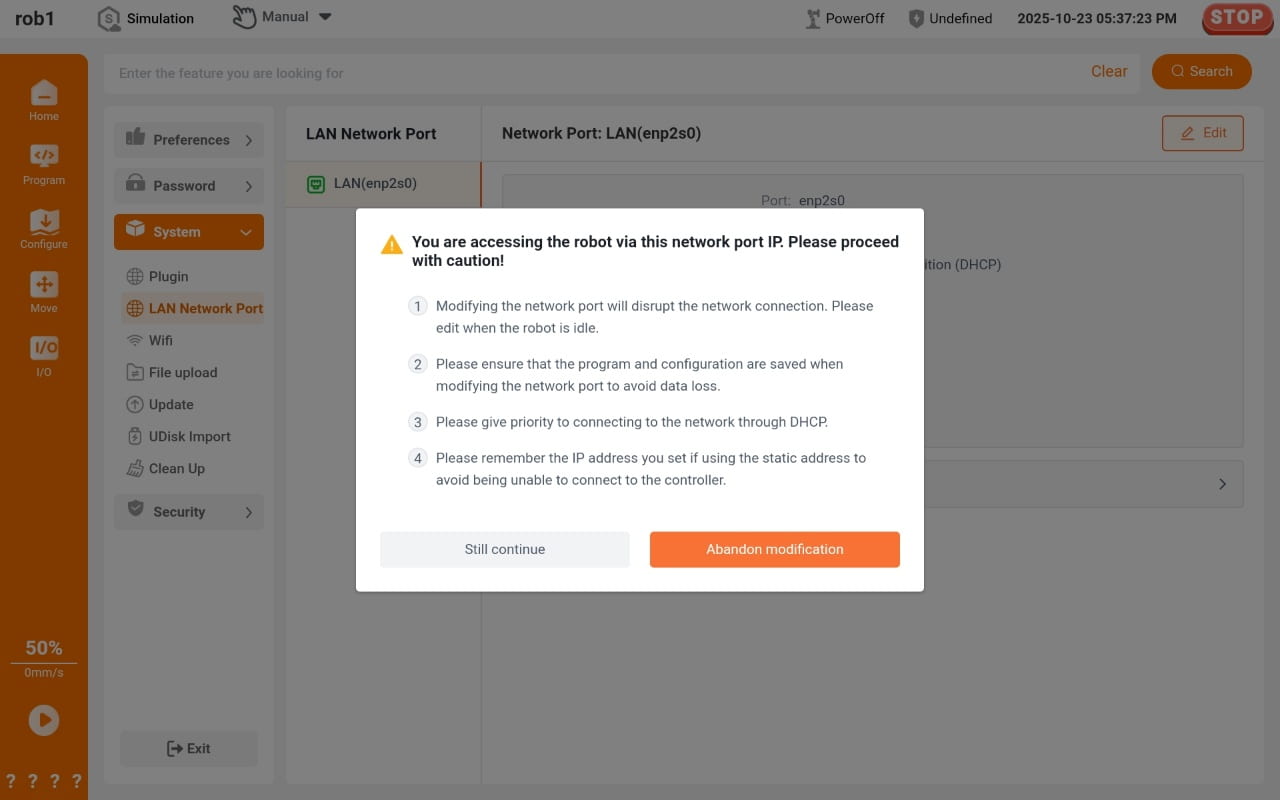

If the network port IP in use is modified, a risk prompt will appear to avoid accidental data loss

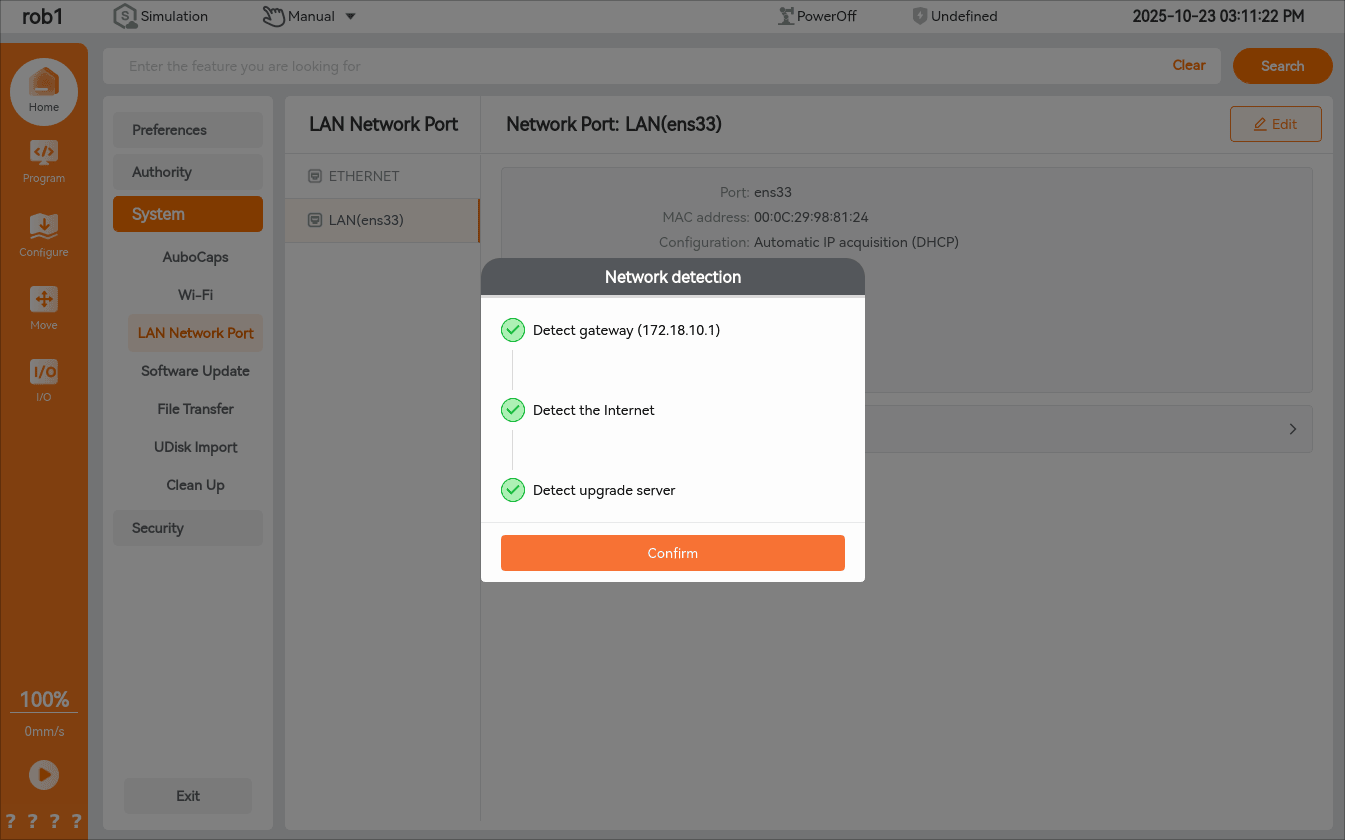

2.2 Network detection

The network detection can be performed on the IP in use, but cannot be performed when there is no IP

2.3 Wired network port depending on controller hardware

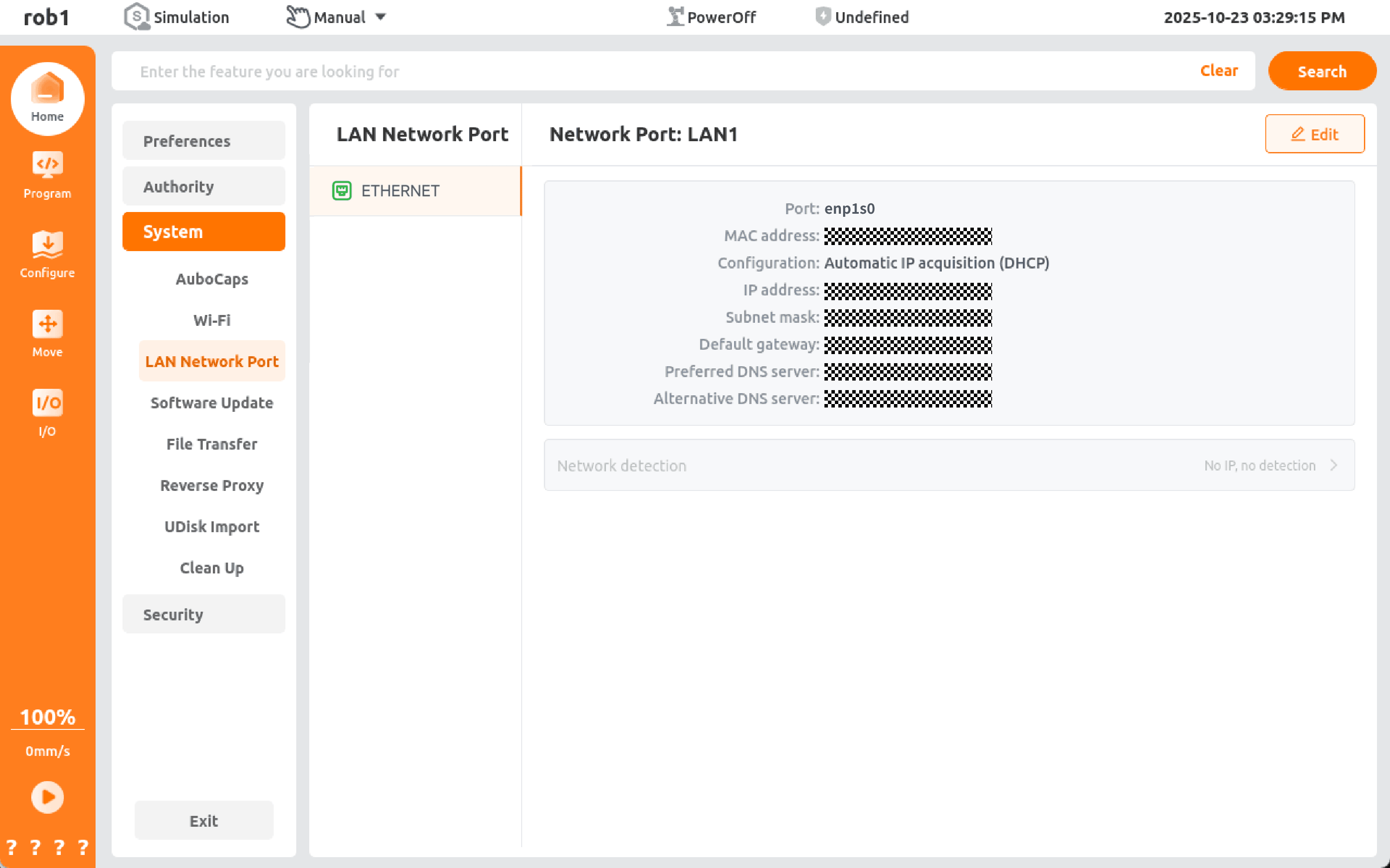

2.3.1 Improved controller

The improved controller has a network port, identified as [Ethernet], and the corresponding device name in the system is [enp1s0]

2.3.2 iS controller

The iS controller has two network ports, uniformly identified as [LAN]. There is only one network port actually available to users, the corresponding device name in the system is [enp1s0], and the other network port is used to connect the control panel and cannot be removed

2.3.2 S controller

The S controller has a network port, identified as [ETHERNET], and the corresponding device name in the system is [eth0]

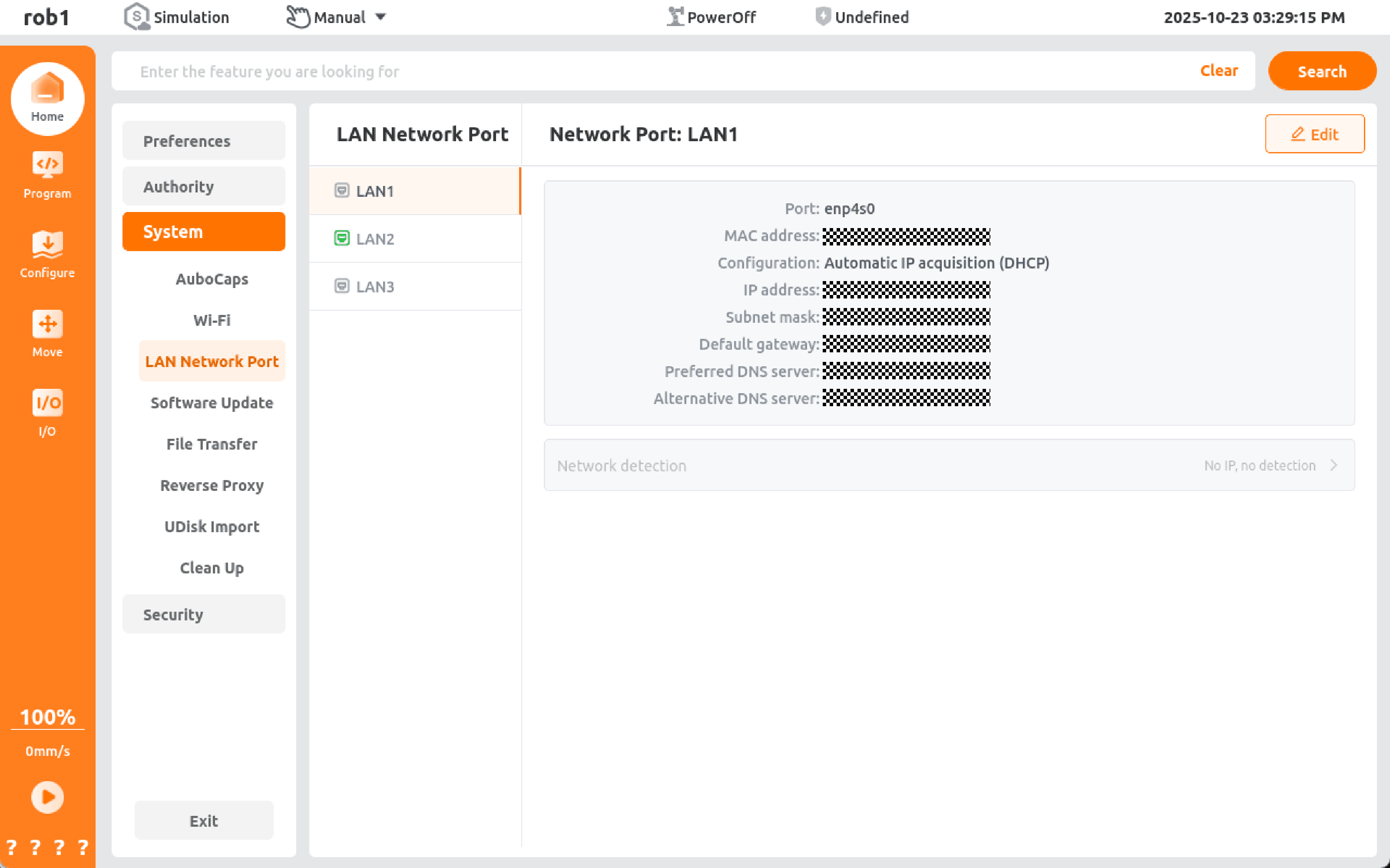

2.3.3 New C controller

The new C controller has three network ports, identified as [LAN1], [LAN2] and [LAN3], and the corresponding device names in the system are [enp4s0], [enp3s0] and [enp2s0] in turn
