AUBO-i Series Robot Arm Product Specs
Product Specs
AUBO-i Series Robotic Arm Product Specification
Introduction

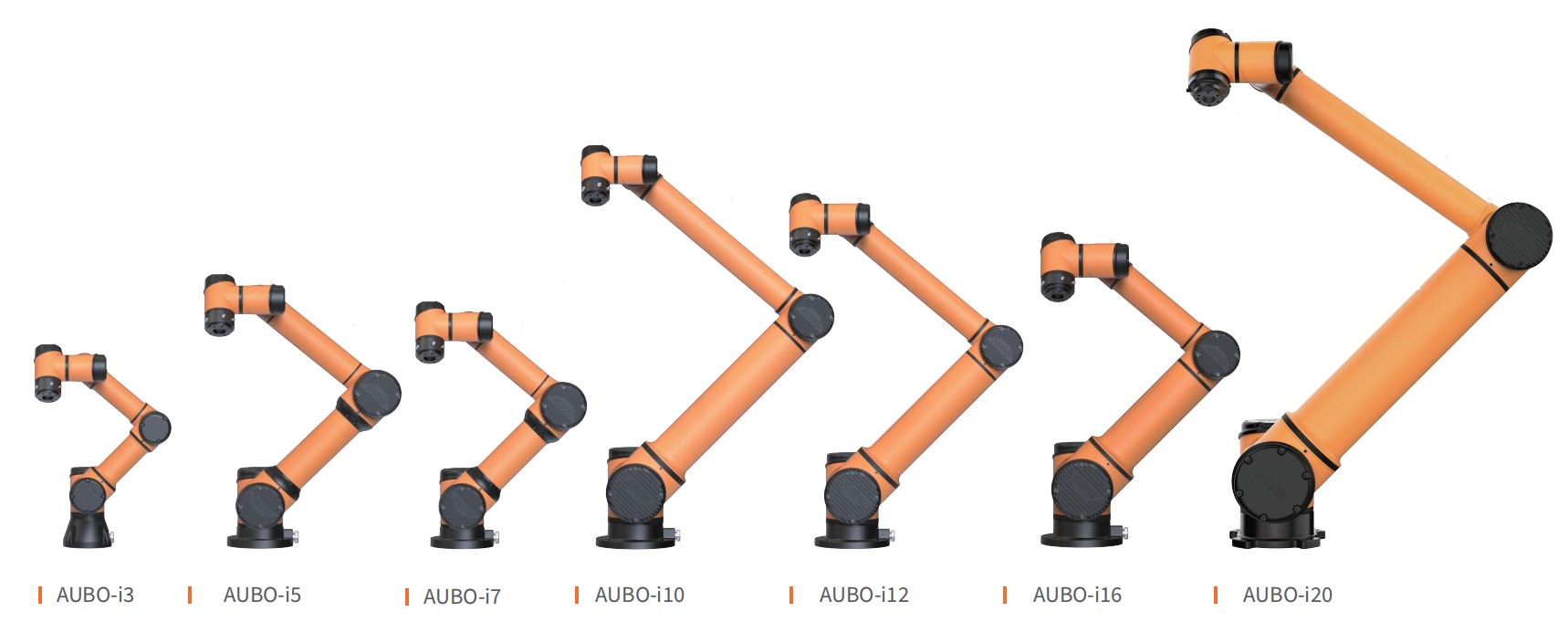

The AUBO-i Series Robotic Arms are intelligent, lightweight 6-DOF modular cobots launched by AUBO (Beijing) Intelligent Technology Co., Ltd. Available in eight models, they offer options for a payload of 3 kg to 25 kg and a reach of 0.625 m to 1.65 m.
The AUBO-i Series can work with the AUBO-CB-iS Series controller.
Applications
3C, automotive, new energy, semiconductors, machining, hardware and appliances, kitchen and bath, healthcare, research and education, F&B, new retail, daily chemicals, and logistics.
Features & Advantages
Higher precision: Repeatability and power-on accuracy are further optimized, the maximum collision force is reduced, and millisecond-level system response ensures positioning accuracy and smoother trajectories.
Increased speed: Operating speed is boosted by 10%-20%, with highly efficient 6-DOF performance that greatly improves work efficiency.
Stronger functionality: An open system platform with RS485 integrated at the tool end, added end-effector drag-to-teach, and high-current power supply support, enabling direct communication with a wider range of end tools, vision, and mobile peripherals for greater flexibility and convenience.
Superior safety: Certified to multiple professional standards for stable and reliable operation. Improved collision detection sensitivity requires no safety fencing, making human-robot collaboration safer.
Heavy payload and extended reach (i20/i25): Delivers a 20 kg / 25 kg ultra-heavy payload, ±360° joint rotation, a maximum working radius of 1500-1650 mm, repeatability of ±0.05-0.1 mm, and a payload-to-weight ratio of 1:3 (i20) / 1:2.3 (i25), covering a wide range of heavy-payload applications.
Safe collaboration (i20/i25): Can be equipped with force sensors for collision detection and drag-to-teach.
Open system: An intuitive visual interface that is easy to learn, with programming mastered in 30 minutes; supports SDK and API and multiple communication protocols for communication with a wide range of end tools, vision, and mobile peripherals.
Certifications
AUBO is committed to providing safe and reliable collaborative robot products. Multiple core product series and models have been certified to:
- ISO 13849 (PL d with Cat. 3) functional safety certification
- EU CE certification
- NRTL certification
- Korea KCs certification
- China CR certification
- SEMI S2 certification
- EU RoHS certification
- Cleanroom class ISO Class 4
