Preferences

[Preferences] page provides you with personal system settings, which can be set according to your needs.

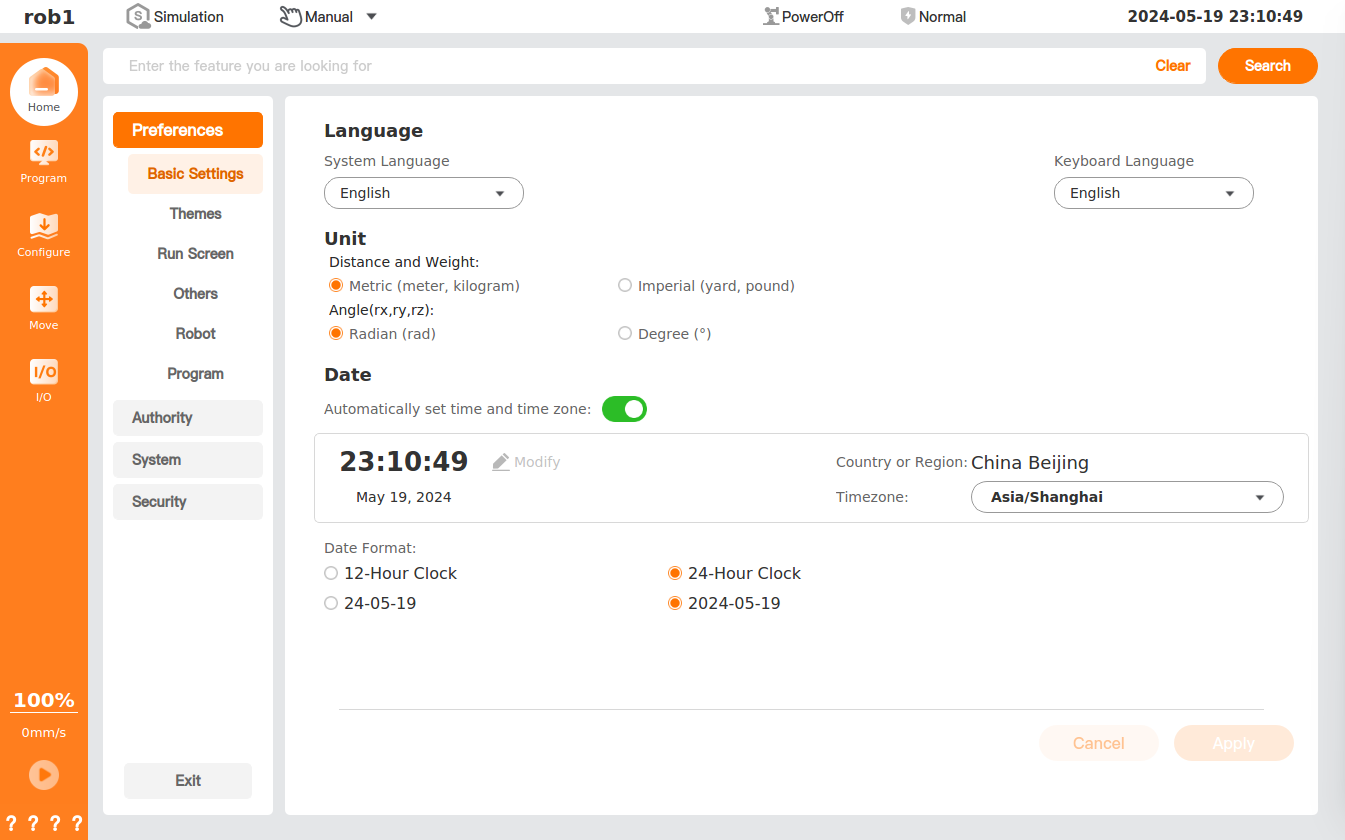

Basic settings teach pendant only

In [Basic Settings] page, you can set the language, unit, date, etc.

提示

The settings of this interface can take effect only after the system is restarted.

• Language

  • System Language: Set the system language.
  • Keyboard Language: Set the keyboard language.

• Unit: Set the units of the system.

• Date: Set the time and date format.

  • Time: AuboStudio supports two modes: system time and custom time. Select whether to follow the system time through . If you do not follow the system time, click [Modify] to custom the time.

• Apply: The setting are applied.

• Cancel: The setting are canceled.

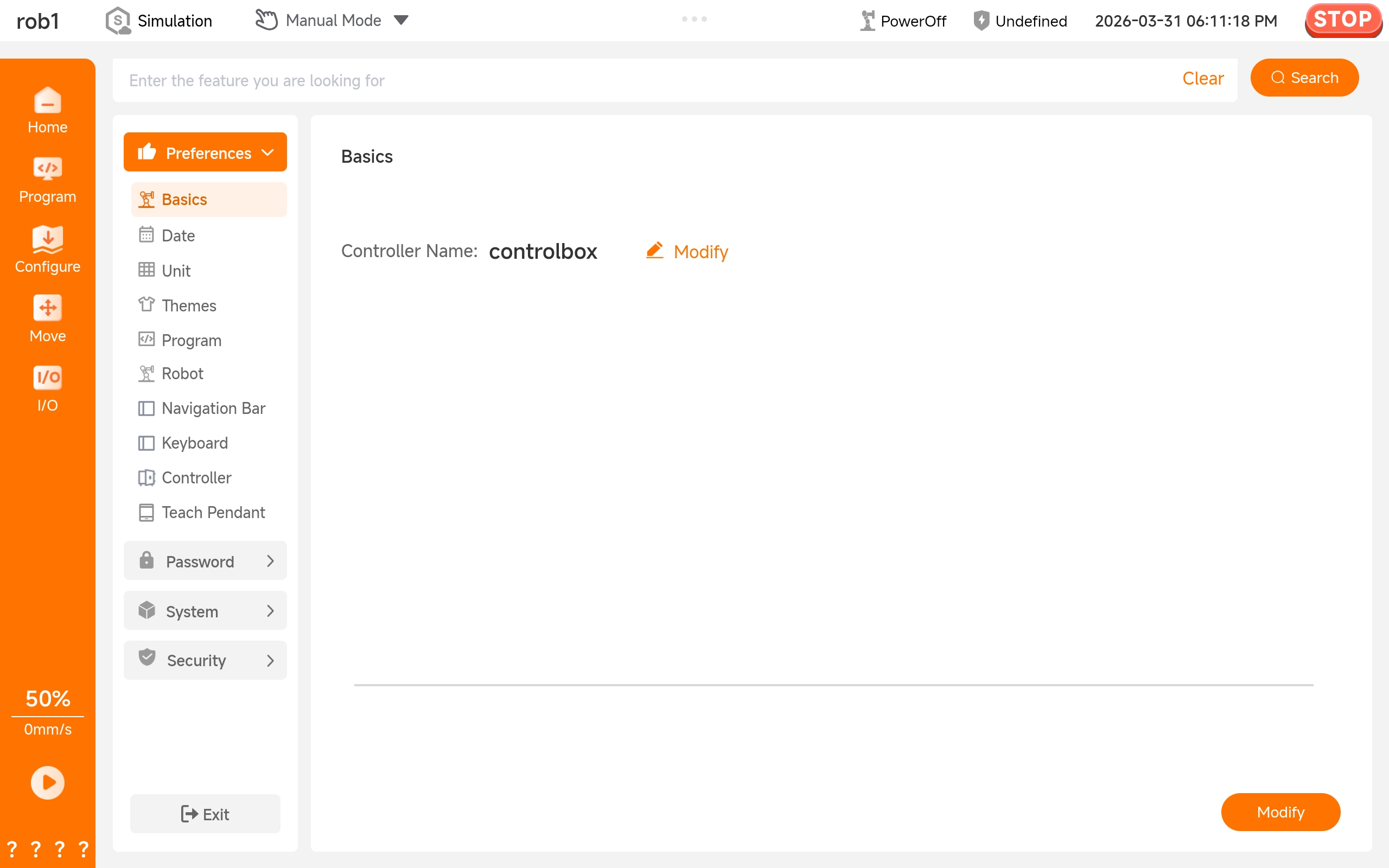

Basic Android only

[Basic] allows you to set the name of the currently connected controller. Click [Modify] to make it take effect.

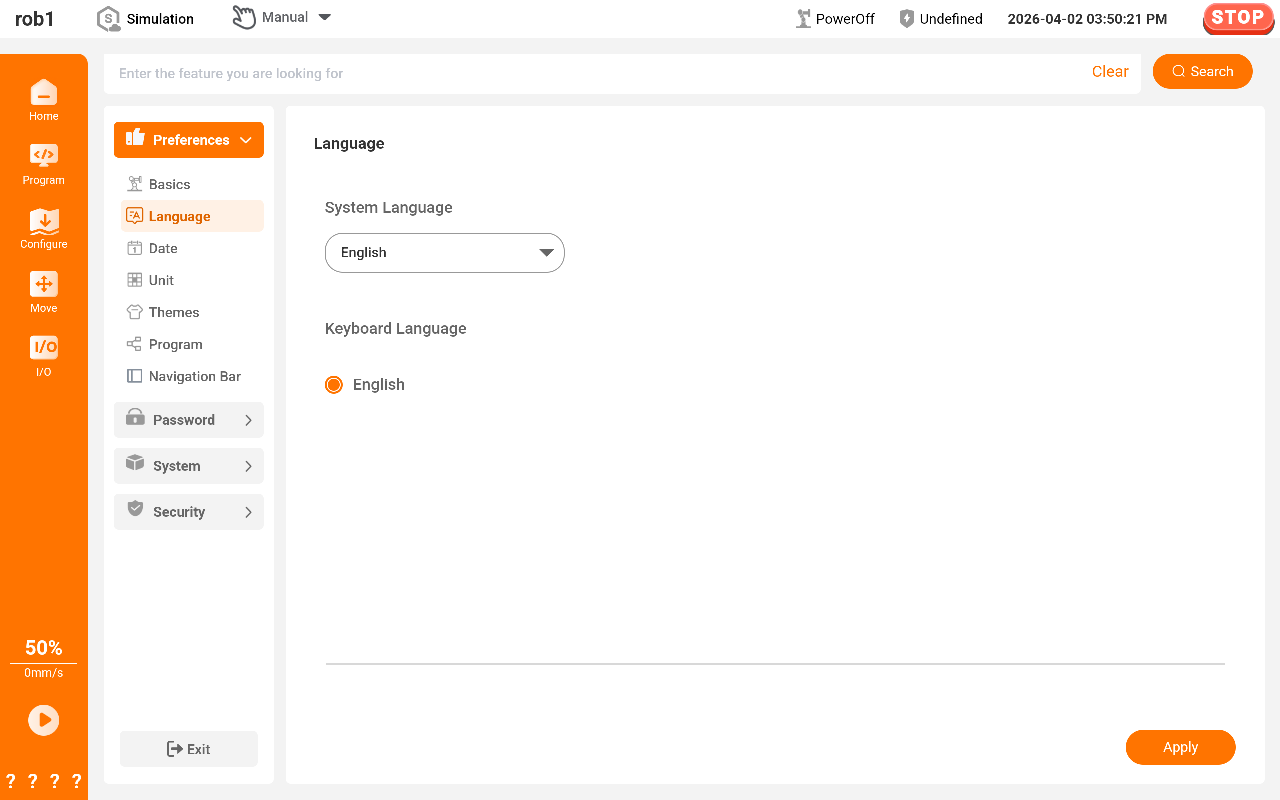

Language Android only

[Language] allows you to set the language of the system and keyboard.

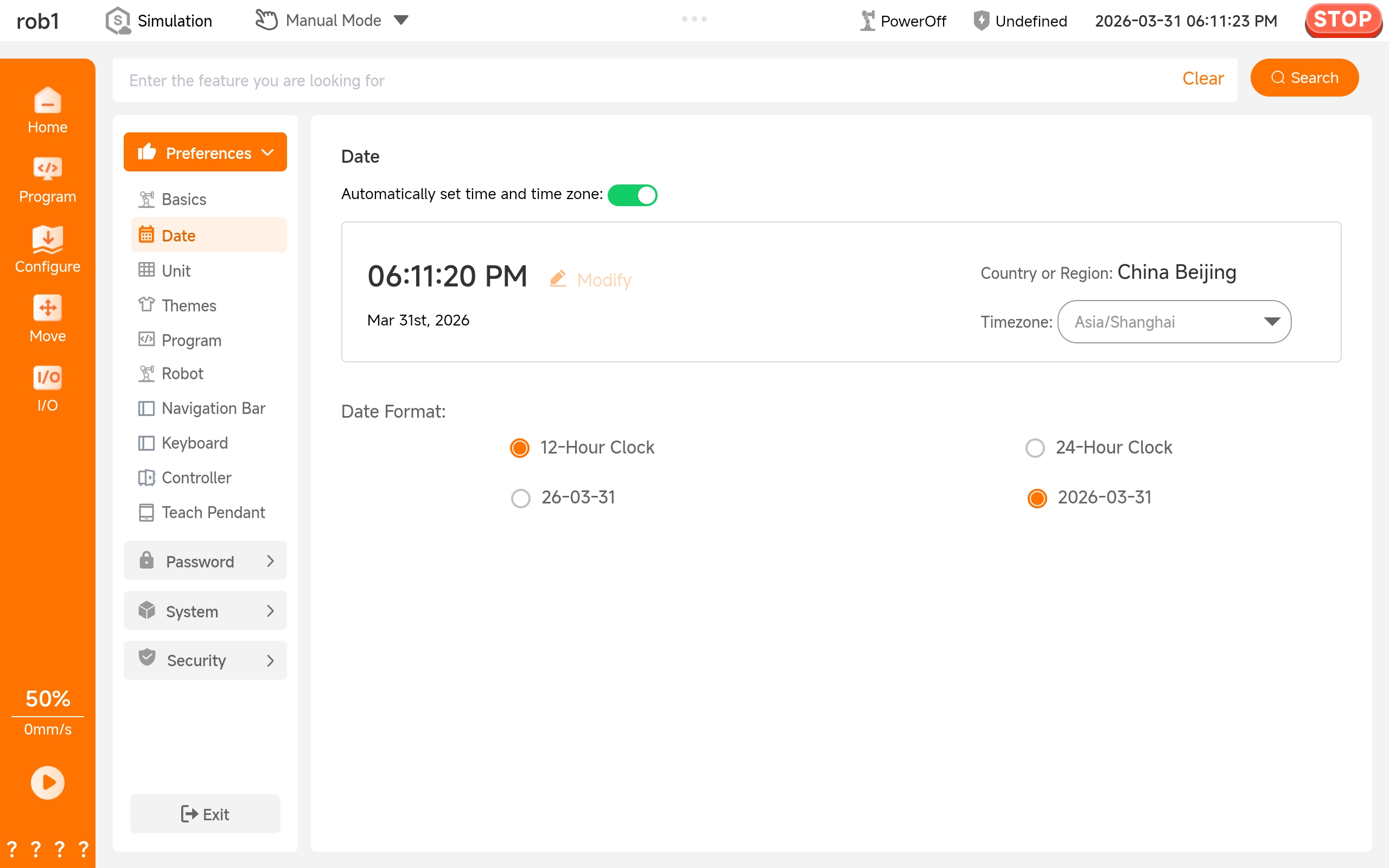

Date Android only

[Date] allows you to set the time and date format. AuboStudio supports two modes: system time and custom time.

• <img class="inline-img" src="/icon/turn_off_icon@2x.png" /: Select whether to follow the system time. If not, click [Modify] to custom the time.
• Date format: Set the display format of the Date status bar.

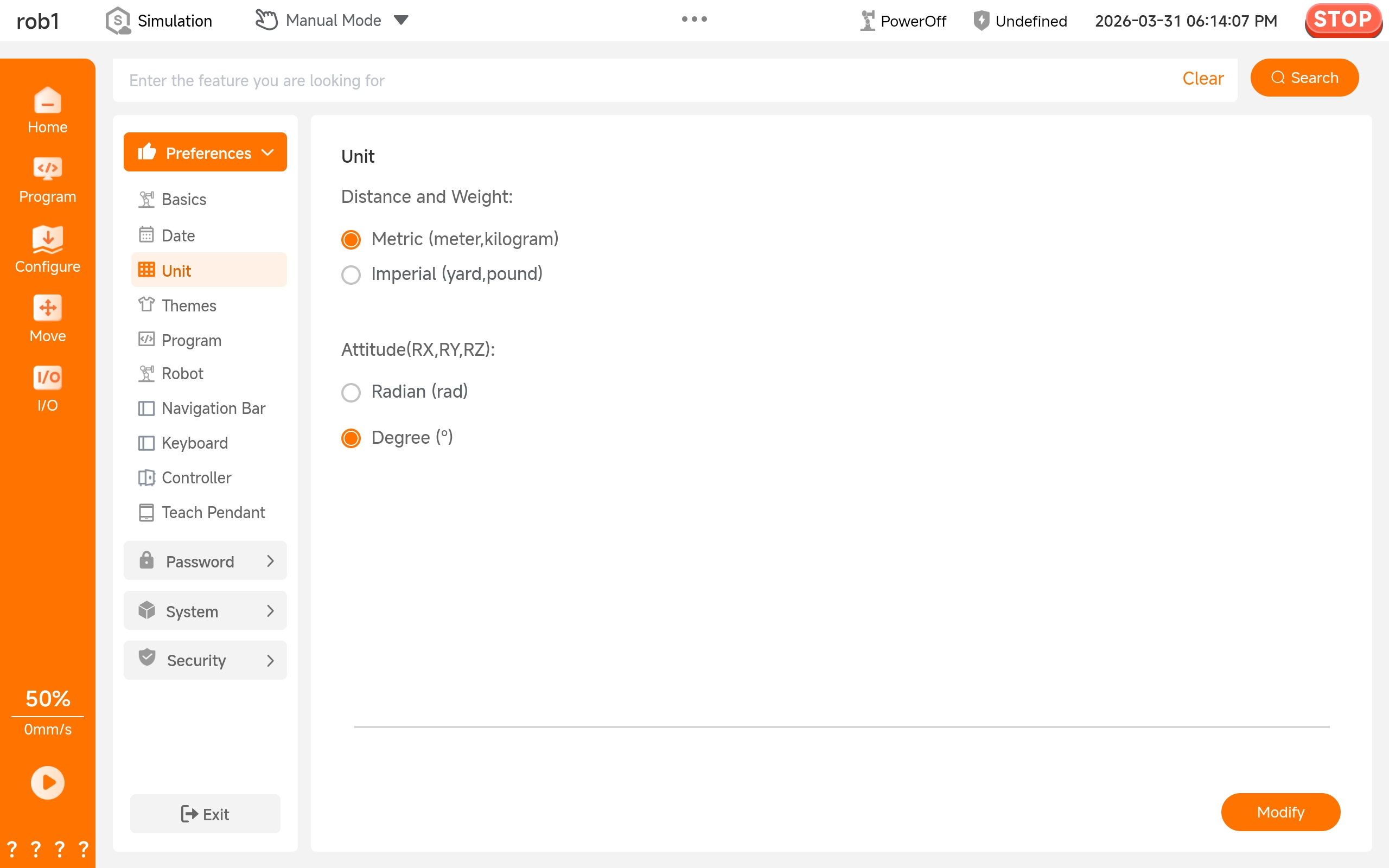

Unit Android only

[Uni] allows you to set the units of the system.

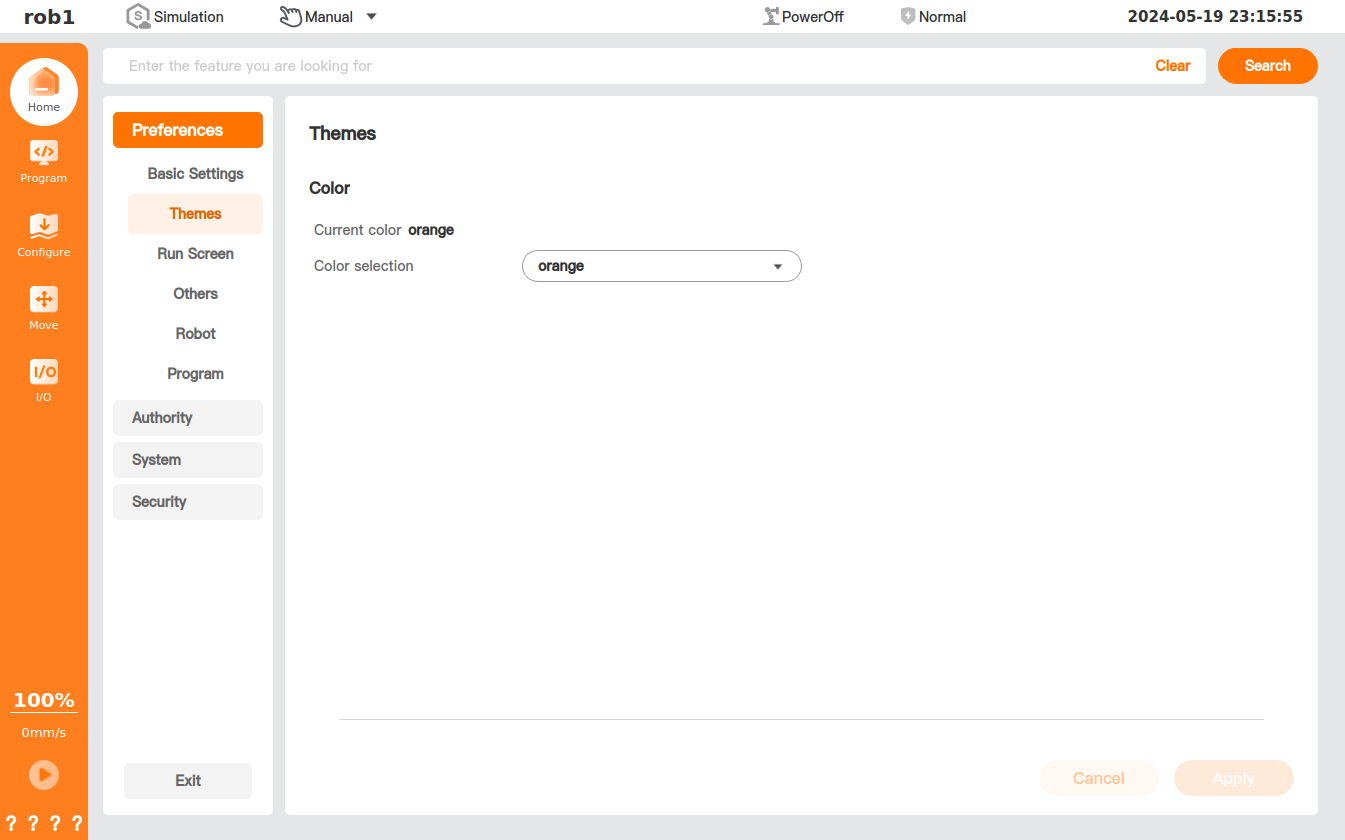

Theme

In [Themes] page, you can set the theme of software interface.

提示

The settings of this interface can take effect only after the system is restarted.

Run Screen

In [Run Screen] page, you can turn on or off the movement speed slider of [Speed].

In automatic mode, if this function is turned on, click [Speed] at the bottom of the left menu bar, the movement speed slider will appear; If this function is turned off, the movement speed slider will not appear, i.e. the movement speed cannot be adjusted.

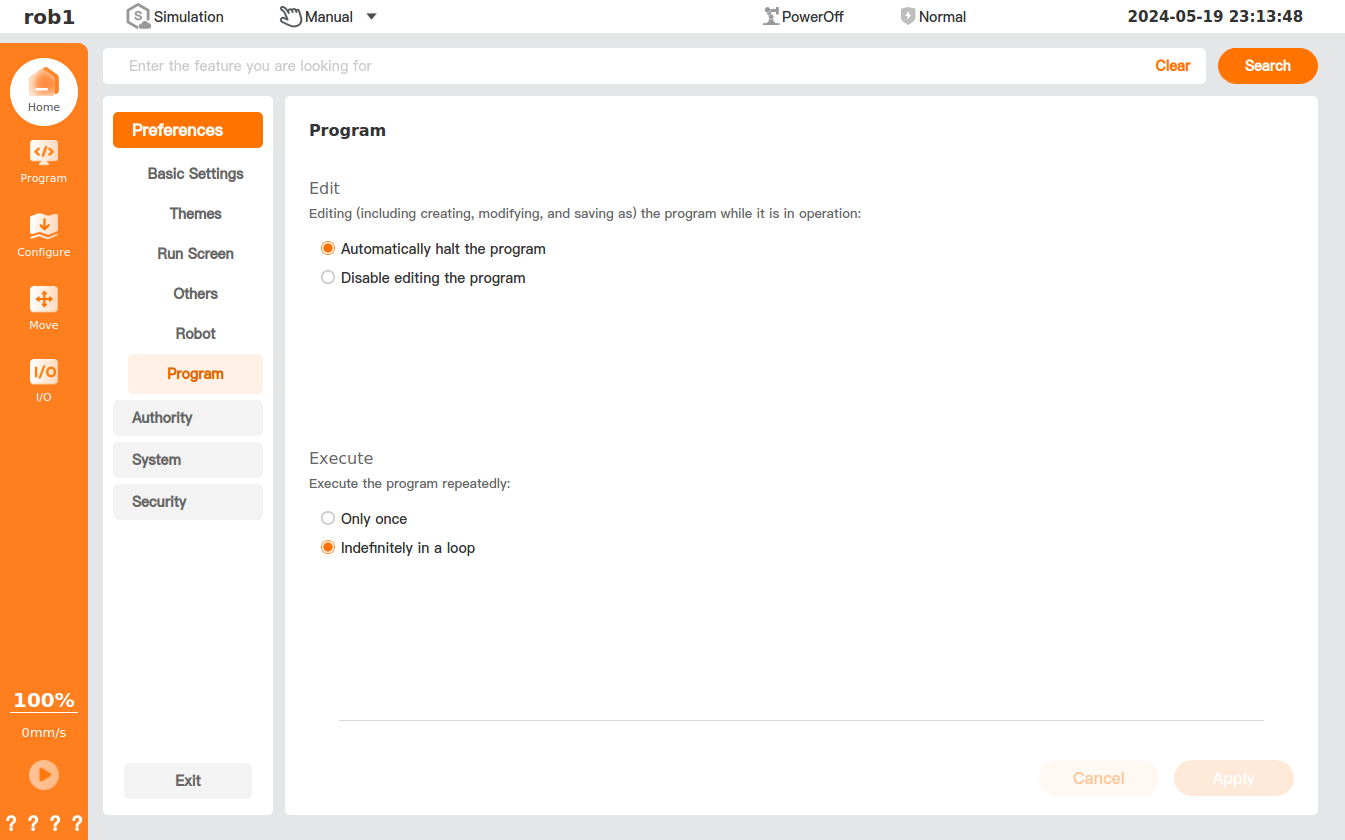

Program

In [Program] page, you can set the default configuration of the editing program.

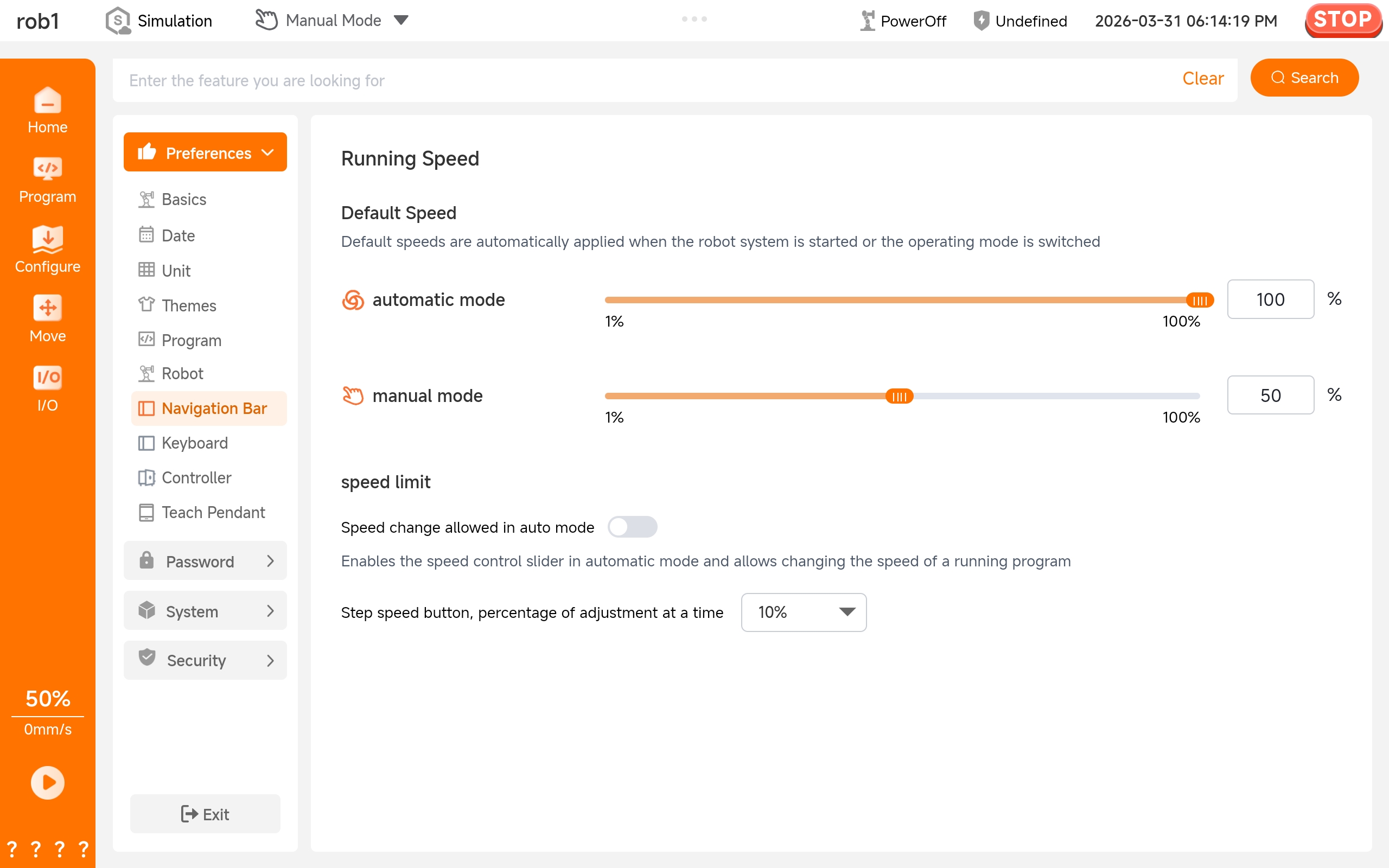

Navigation Bar Android only

[Navigation Bar] allows you to set the default running speed, speed adjustment enable/disable in automatic mode and the speed adjustment step.

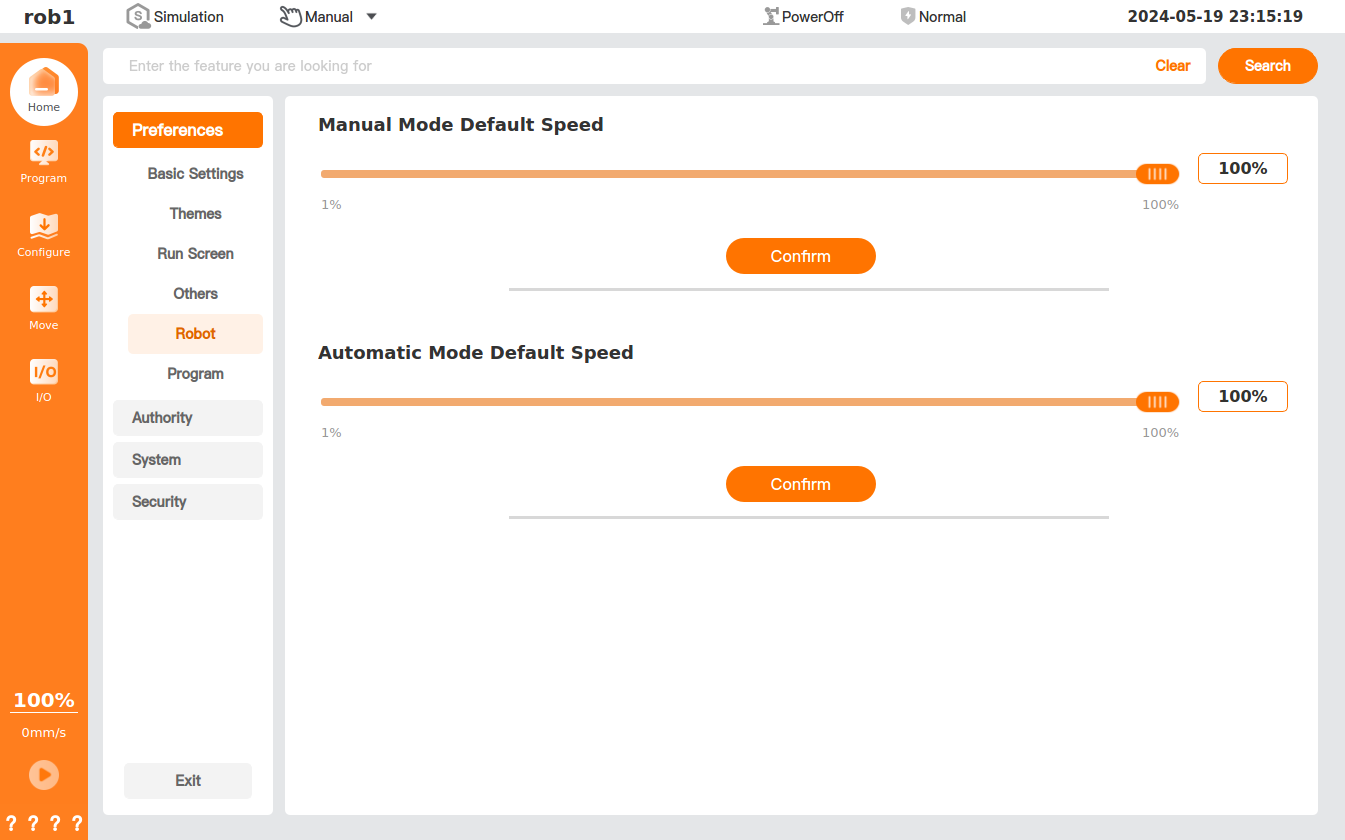

Robot

[Robot] allows you to set default running speed and limited HandGuide.

-: Drag slider to set the robot default speed, and click [Confirm] to apply the settings.

• After enabling "Limited HandGuide", you can adjust the limits for HandGuide on the "Nove > HandGuide" page.

提示

For AuboStudio Android version, the function to set the default running speed is moved to the [Navigation Bar] page.

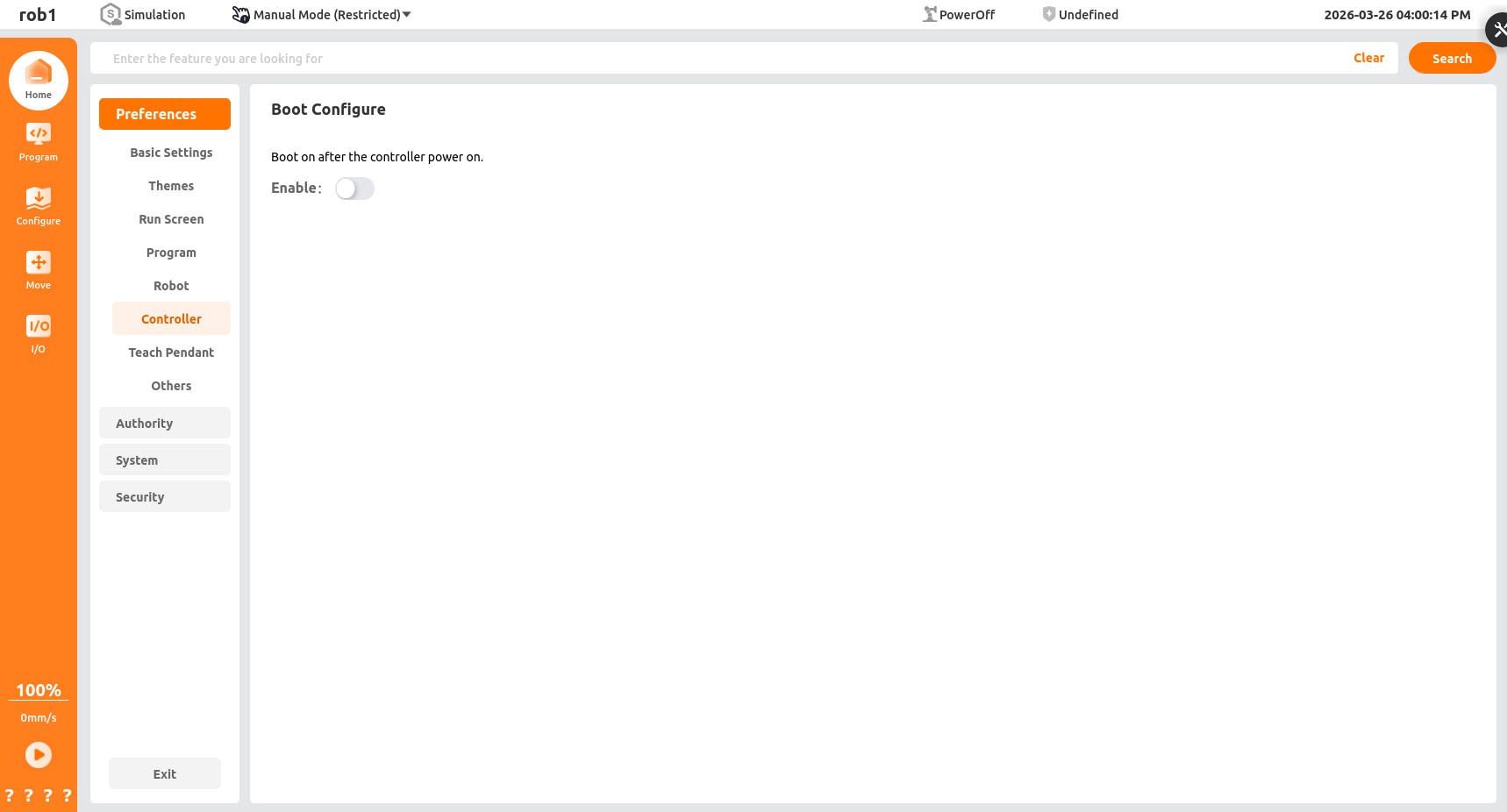

Controller teach pendant only

[Controller] allows you to set for automatic system startup upon power-on of the robot control box.

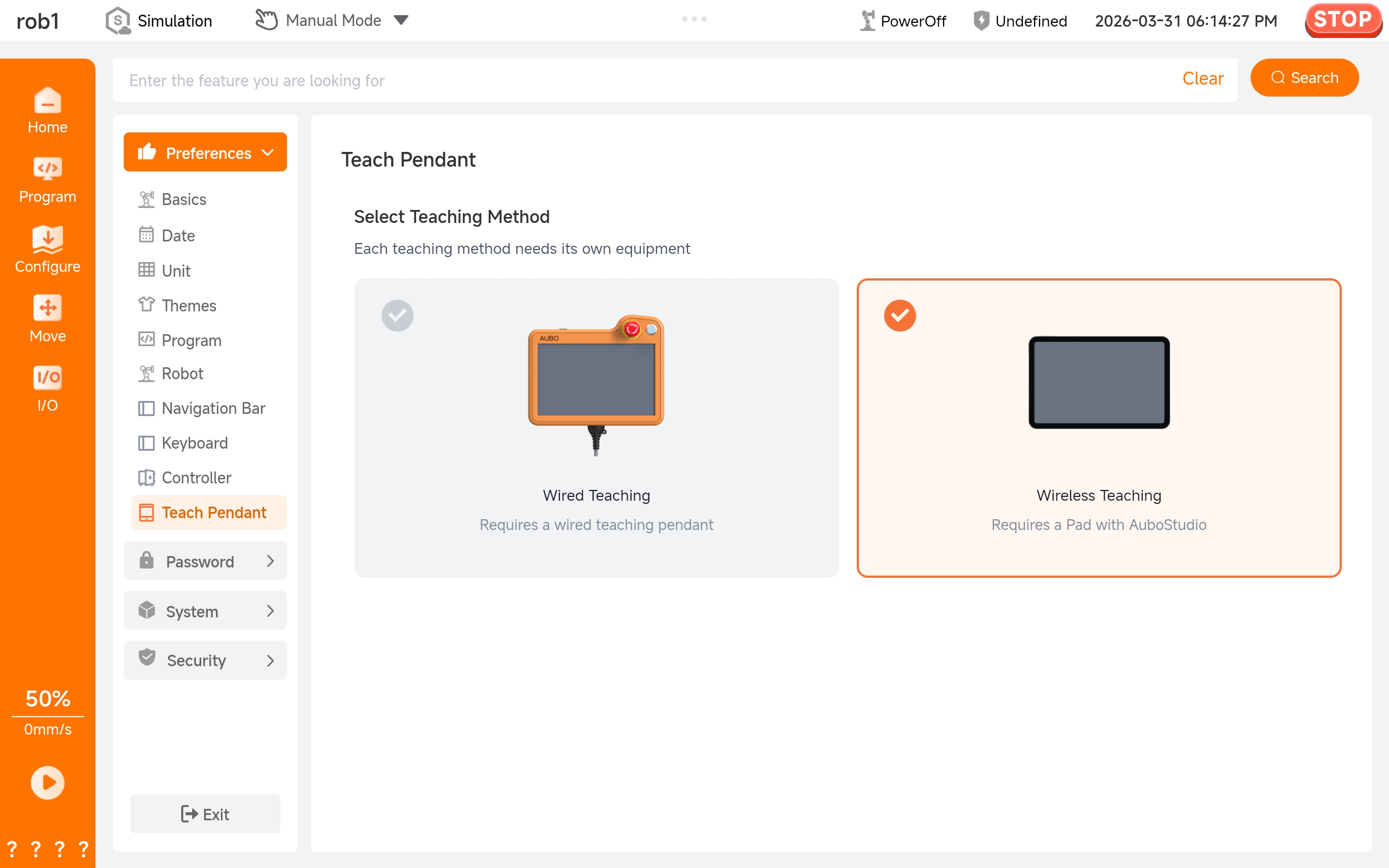

Teach pendant

[Teach Pendant] allows you to set the teaching methods for robot. Different teaching methods require different equipment.

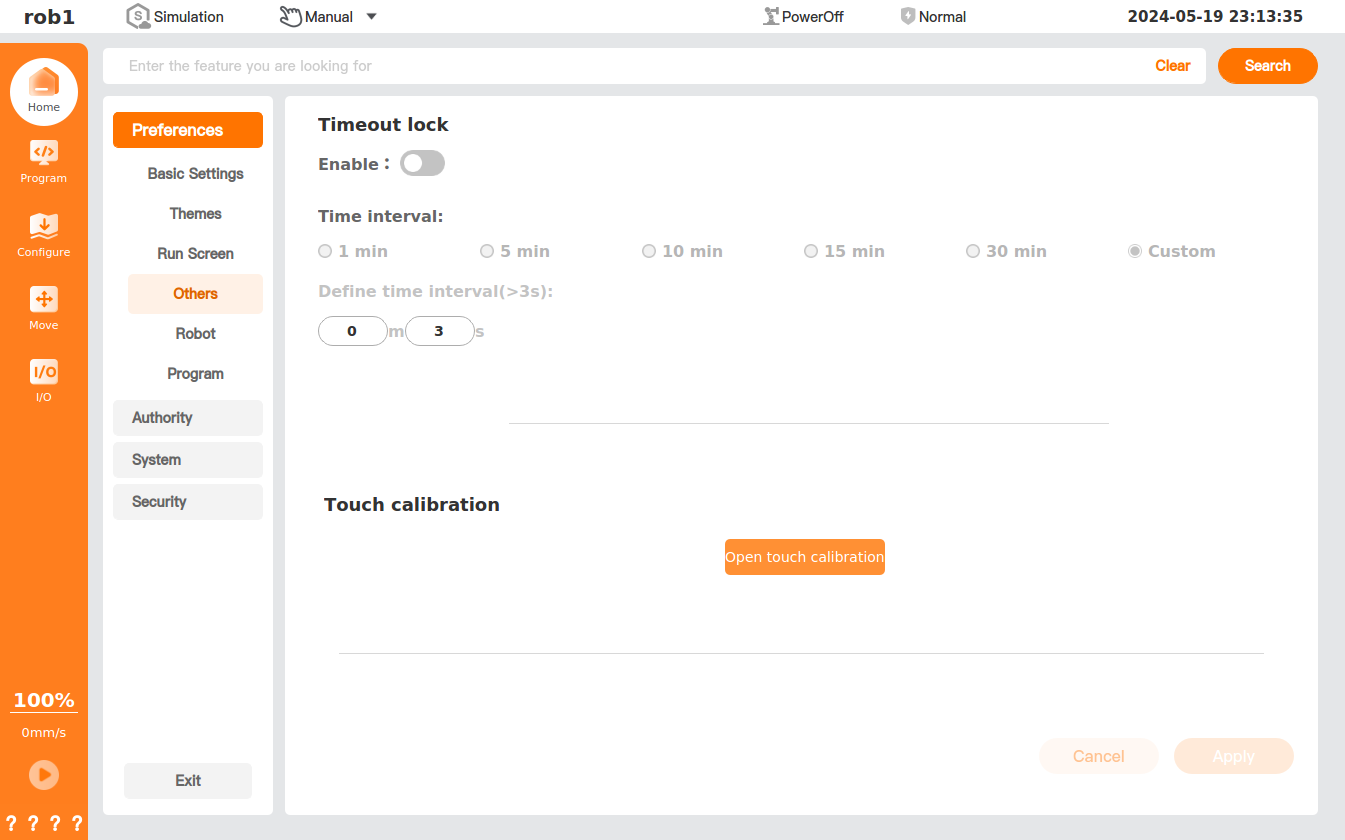

Others teach pendant only

In [Others] page, you can set the screen lock function and calibrate the touch screen.

• Timeout lock:

  • Enable: Enable/disable the "timeout lock" function.
  • Time interval: After turning on the "timeout lock" function, set the time interval for which the screen is not operated, and click [Apply] to save and enable the settings.

• Touch calibration: Calibrate the teach pendant screen.

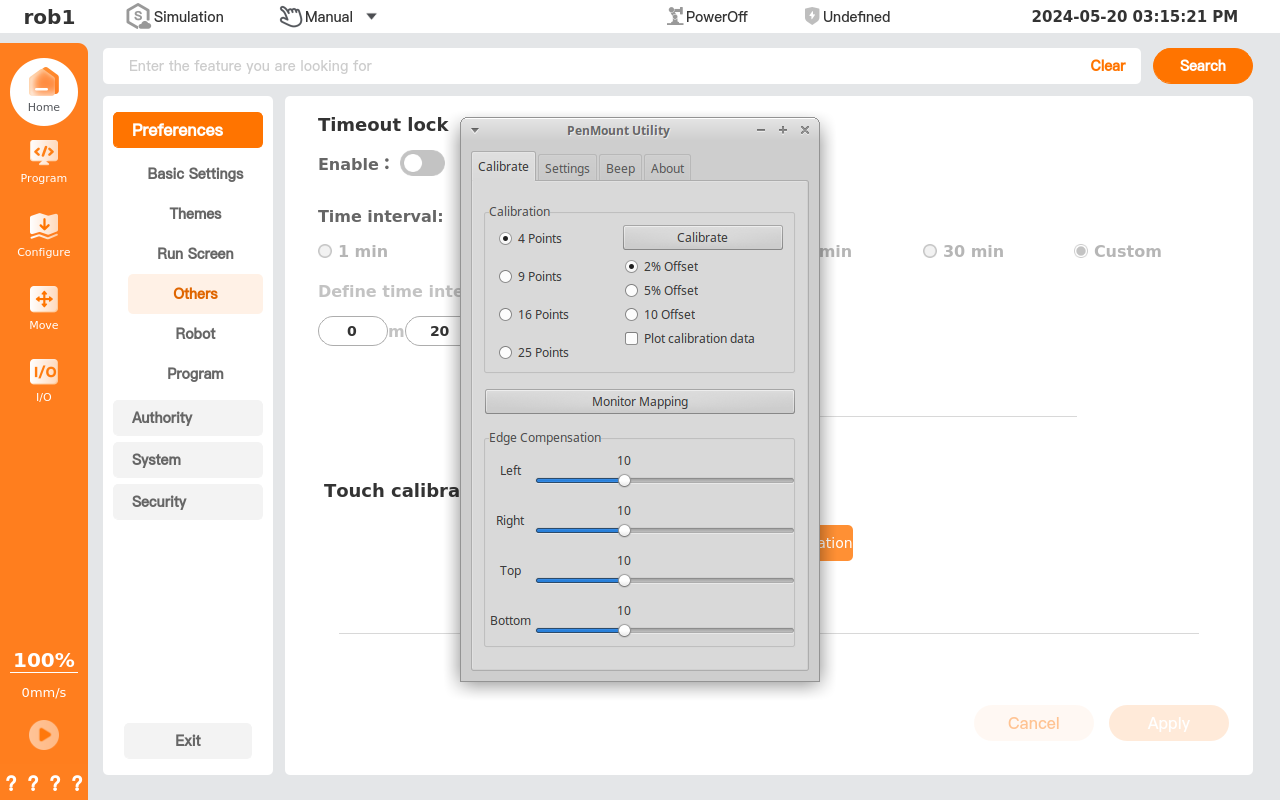

Touch calibration steps

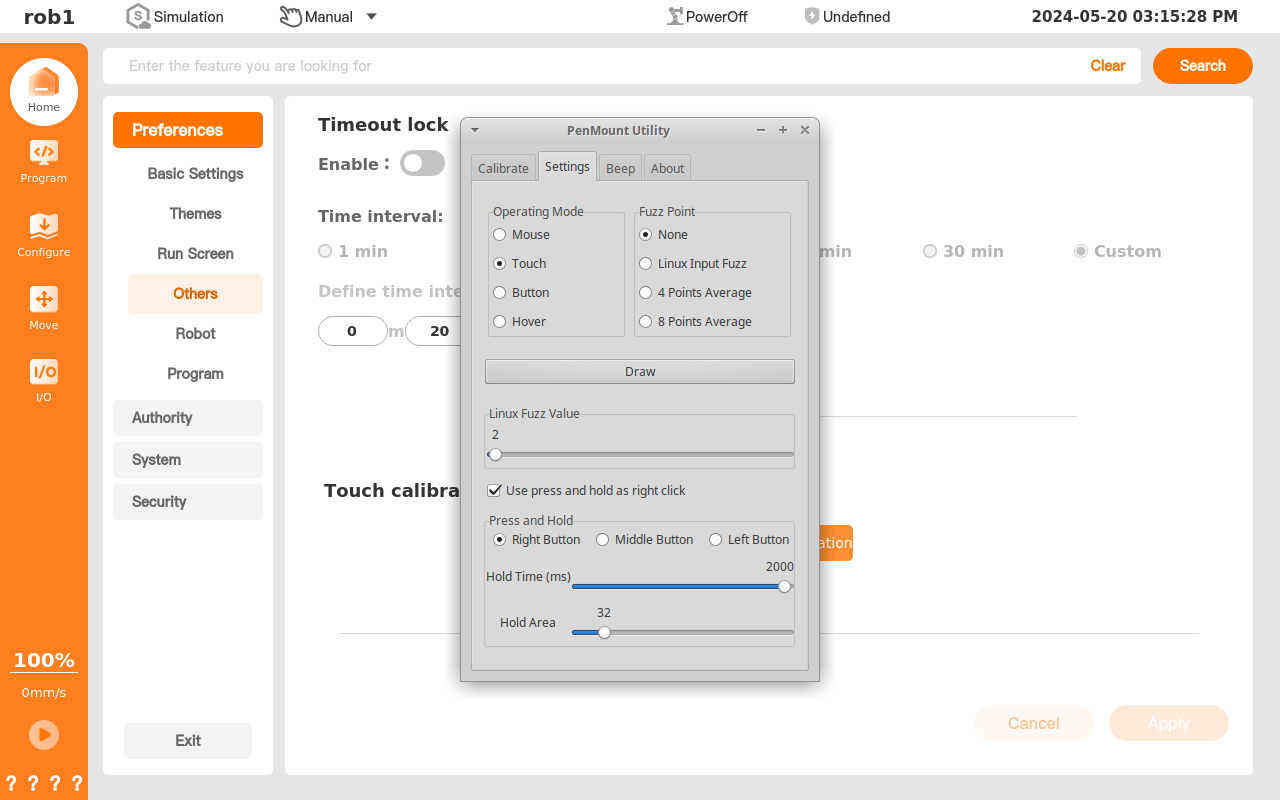

1. Click [Open touch calibration] to pop up the touch calibration software window. Click "Settings" tab and select "Touch" in "Operation Mode".



2. Click "Calibrate" and select the number of test points in "Calibration". At present, there are four options: 4, 9, 16, and 25. The more points, the more accurate the touch calibration. It is recommended to use 4 or 9 points.

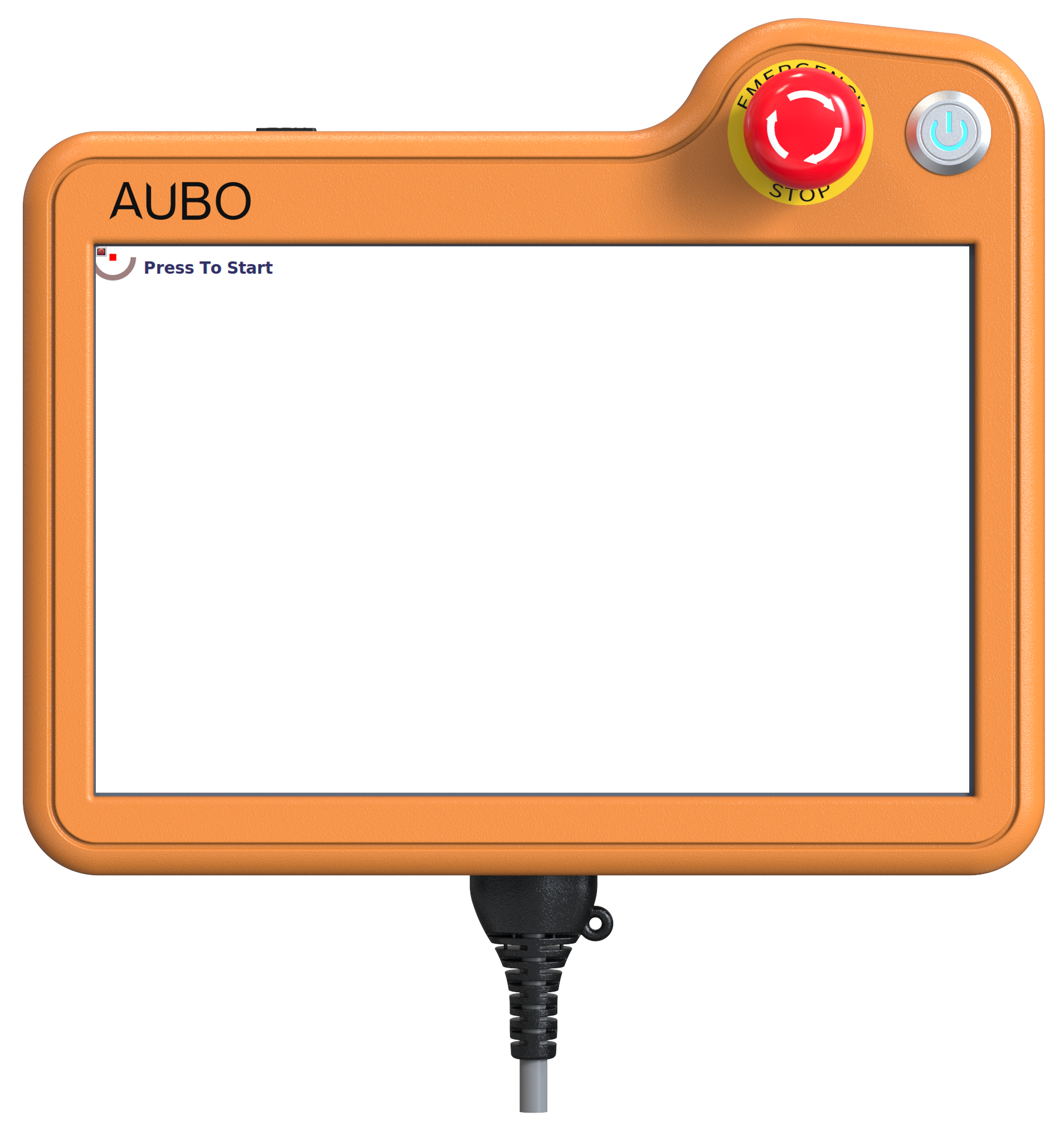

3. Click [Calibrate] to enter the calibration page, and follow the prompts to complete the touch calibration.



4. Close the touch calibration software after the touch calibration is completed.
